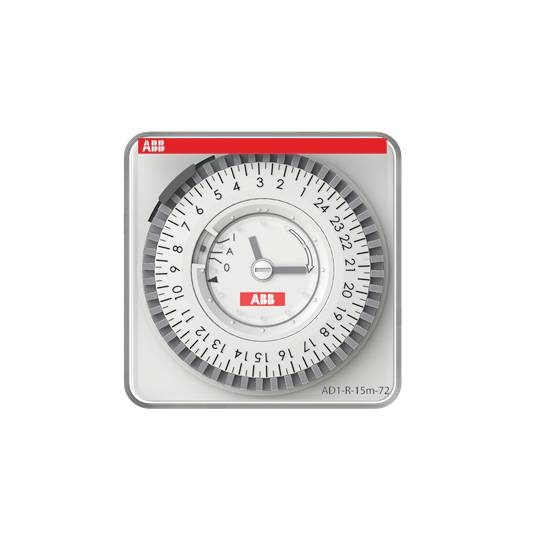

ABB AD1-R-15M-72 Timer 230 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Timer
- Operating voltage
230 V AC
- Channels
1-channel
- Type
AD1-R-15M-72
- Manufacturer part #
2CSM208131R1000
- Dim
(L x W x H) 72 x 72 x 55 mm
- Min. power reserve
100 h
- Width
72 mm
- Height
55 mm
- Length
72 mm
Panel mounting 72x72 mm
72 mm
55 mm
72 mm
1
FALSE
FALSE
Change-over contact
1
FALSE
TRUE
TRUE
TRUE
FALSE
TRUE
TRUE
AC
TRUE
230-230 V
0
100
15 min
16 A
15 min
IP20
1 s
200 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103162 ABB AD1-R-15M-72 Timer 230 V AC
User & Safety Instructions
User & Safety Instructions 3103162 ABB AD1-R-15M-72 Timer 230 V AC
Description
Analogue electromechanical timer for front mounting in distributors for controlling consumers. Suitable for lighting control of incandescent lamps, fluorescent lamps, halogen lamps, energy-saving lamps and LEDs.
