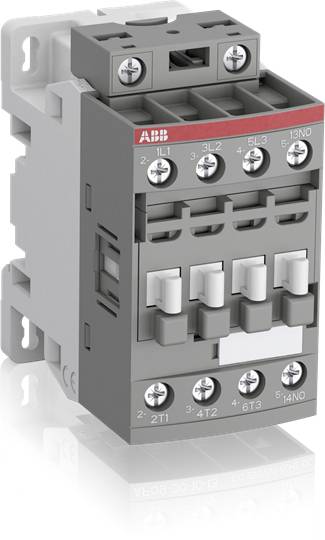

Name: ABB AF12Z-30-10-22 Contactor 4 makers 5.5 kW + surge protection 1 pc(s)
Brand: ABB
SKU: 3105220

Technical specifications

Product type: Contactor

Type: AF12Z-30-10-22

No. of pins: 3-pin

Contact type: 4 makers

Auxiliary contact type: 4 makers

Control voltage (max.): 48 V AC
48 V DC

Control voltage range: 48, 48 V AC, V DC (max)

Permanent current (max.): 28 A

: 5.5 kW

Features: + surge protection

Connection: Screws

Content: 1 pc(s)

: 45

: 86 mm

: 77 mm

: FALSE

: 5.5 kW

: 3

: 0

: 1

: 0

: 12 A

: 28 A

: 48-130 V

: 48-130 V

: 48-130 V

: Screw connection

: 690-690 V

: 690-690 V

: AC/DC

: 3.729

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3105220 ABB AF12Z-30-10-22 Contactor 4 makers 5.5 kW + surge protection 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105220 ABB AF12Z-30-10-22 Contactor 4 makers 5.5 kW + surge protection 1 pc(s)

Description

The AF12Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very broad control voltage. This can also cope with large control voltage fluctuations. AFZ contactors can withstand short voltage drops and voltage drops (according to SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Other accessories such as timers, wiring aids and locking links, etc. complete the range.

This text is machine translated.

Description

The AF12Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very broad control voltage. This can also cope with large control voltage fluctuations. AFZ contactors can withstand short voltage drops and voltage drops (according to SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Other accessories such as timers, wiring aids and locking links, etc. complete the range.

This text is machine translated.
