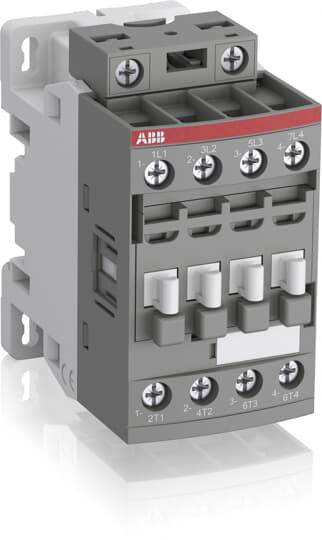

ABB AF16Z-40-00-23 Switch 4 makers 100 V 30 A 1 pc(s)
Product type
Switch
No. of pins
4-pin
Nominal voltage
100 V
Current load
30 A
Connection
Screws
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch
- Type
AF16Z-40-00-23
- No. of pins
4-pin
- Contact type
4 makers
- Nominal voltage
100 V
- Control voltage (min.)
20 V DC
- Control voltage (max.)
500 V DC
- Control voltage range
20 - 500 V DC
- Switching voltage (max.)
7.5 V AC
- Permanent current (max.)
30 A
- Current load
30 A
- Connection
Screws
- Content
1 pc(s)
45
86 mm
77 mm
FALSE
7.5 kW
4
0
0
0
18 A
30 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321045 ABB AF16Z-40-00-23 Switch 4 makers 100 V 30 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2321045 ABB AF16Z-40-00-23 Switch 4 makers 100 V 30 A 1 pc(s)
