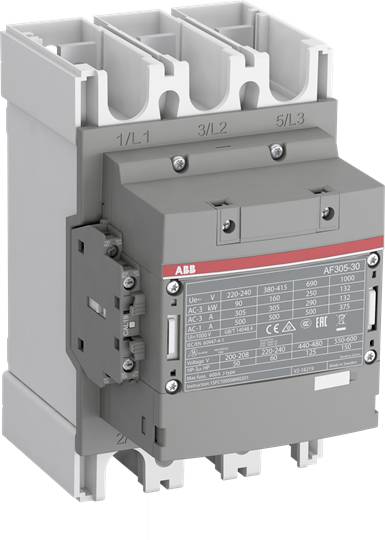

Name: ABB AF305-30-22-14 Contactor 5 makers, 2 breakers 160 kW + auxiliary contact 1 pc(s)
Brand: ABB
SKU: 3111038

Technical specifications

Product type: Contactor

Type: AF305-30-22-14

No. of pins: 2-pin

Contact type: 5 makers
2 breakers

Control voltage (min.): 250 V AC
250 V DC

Control voltage (max.): 500 V AC
500 V DC

Control voltage range: 250, 250 - 500, 500 V AC, V DC

Permanent current (max.): 500 A

: 160 kW

Features: + auxiliary contact

Connection: Screws

Content: 1 pc(s)

: FALSE

: 160 kW

: 3

: 0

: 2

: 2

: 305 A

: 500 A

: 250-500 V

: 250-500 V

: 250-500 V

: Screw connection

: AC/DC

: 93.2125 kW

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3111038 ABB AF305-30-22-14 Contactor 5 makers, 2 breakers 160 kW + auxiliary contact 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3111038 ABB AF305-30-22-14 Contactor 5 makers, 2 breakers 160 kW + auxiliary contact 1 pc(s)

Description

AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. This means they can be used worldwide and only in small variations. AF116 to AF370 are also available in direct PLC-controllable versions, as of AF400 a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as terminal covers, wiring aids and locking links complete the range.
