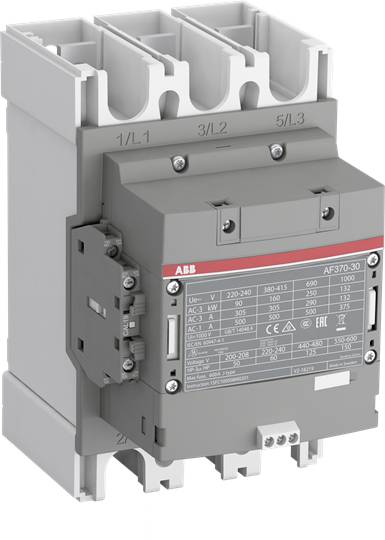

Name: ABB AF370-30-11-34 Contactor 4 makers, 1 breaker 200 kW + auxiliary contact Piece 1 pc(s)
Brand: ABB
SKU: 3111072

Technical specifications

Packaging type: Piece

Product type: Contactor

Type: AF370-30-11-34

No. of pins: 2-pin

Contact type: 4 makers
1 breaker

Control voltage (min.): 250 V AC
250 V DC

Control voltage (max.): 500 V AC
500 V DC

Control voltage range: 250, 250 - 500, 500 V AC, V DC

Permanent current (max.): 600 A

: 200 kW

Features: + auxiliary contact

Connection: Screws

Content: 1 pc(s)

: FALSE

: 200 kW

: 3

: 0

: 1

: 1

: 370 A

: 600 A

: 250-500 V

: 250-500 V

: 250-500 V

: Screw connection

: AC/DC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3111072 ABB AF370-30-11-34 Contactor 4 makers, 1 breaker 200 kW + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3111072 ABB AF370-30-11-34 Contactor 4 makers, 1 breaker 200 kW + auxiliary contact Piece 1 pc(s)

Description

AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. This means they can be used worldwide and only in small variations. AF116 to AF370 are also available in direct PLC-controllable versions, as of AF400 a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as terminal covers, wiring aids and locking links complete the range.

This text is machine translated.

Description

AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. This means they can be used worldwide and only in small variations. AF116 to AF370 are also available in direct PLC-controllable versions, as of AF400 a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as terminal covers, wiring aids and locking links complete the range.

This text is machine translated.
