ABB AF38-22-00-13 Contactor 2 makers, 2 breakers 11 kW + surge protection Piece 1 pc(s)

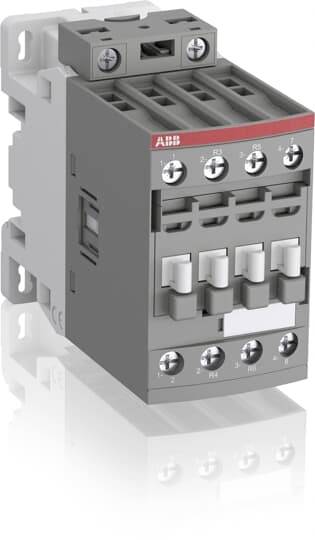

A grey electrical contactor from ABB with multiple terminals and switching surfaces, commonly used in industrial applications.
Product type
Contactor
No. of pins
4-pin
Power
11 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Contactor

Type

AF38-22-00-13

No. of pins

4-pin

Contact type

2 makers

2 breakers

Control voltage (min.)

20 V DC

Control voltage (max.)

100 V AC

100 V DC

Control voltage range

20 - 100, 100 V AC, V DC

Max. switching capacity

11000 W

Permanent current (max.)

55 A

11 kW

Features

+ surge protection

Connection

Screws

Content

1 pc(s)

45

86 mm

101 mm

FALSE

18.5 kW

2

2

0

0

38 A

50 A

100-250 V

100-250 V

100-250 V

Screw connection

690-690 V

690-690 V

AC/DC

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3105457 ABB AF38-22-00-13 Contactor 2 makers, 2 breakers 11 kW + surge protection Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105457 ABB AF38-22-00-13 Contactor 2 makers, 2 breakers 11 kW + surge protection Piece 1 pc(s)

Description

The 4-pin AF38 contactors are for the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have a built-in surge protector and do not require any additional quenching circuits. All subsequently mountable NC auxiliary contacts are implemented as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
