ABB AF38-30-00K-11 Switch 4 makers 24 V 50 A + surge protection 1 pc(s)

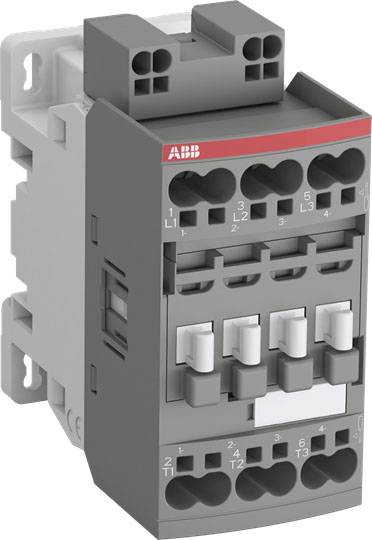

An electrical contactor in grey and black, with red and white labelling on top. The brand name 'ABB' is visible.
Product type
Switch
No. of pins
3-pin
Nominal voltage
24 V
Current load
50 A
Connection
Spring-loaded connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Switch

Type

AF38-30-00K-11

No. of pins

3-pin

Contact type

4 makers

Auxiliary contact type

4 makers

Nominal voltage

24 V

Control voltage (min.)

20 V DC

Control voltage (max.)

500 V AC

Control voltage range

20 - 500 V AC

Switching voltage (max.)

18.5 V AC

Permanent current (max.)

50 A

Current load

50 A

Features

+ surge protection

Connection

Spring-loaded connector

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2323969 ABB AF38-30-00K-11 Switch 4 makers 24 V 50 A + surge protection 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2323969 ABB AF38-30-00K-11 Switch 4 makers 24 V 50 A + surge protection 1 pc(s)

Description

The 3-pin AF38 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have an integrated surge protection and do not require any additional extinguishing elements. All NC auxiliary contacts that can be retrofitted are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range. Contactors with coil code -11 are not suitable for connection to 24V DC PLC outputs.
