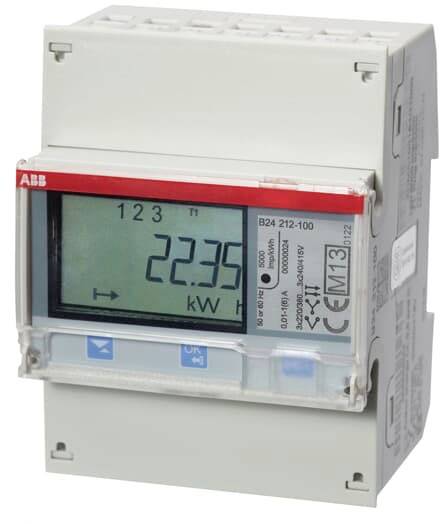

ABB B24 212-100 2CMA100180R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
Product type
Electricity meter (3-phase)
Display
Digital
Calibration
Calibrated
Counter type
electronic
Display
Digital
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Counter type
electronic
- Product type
Electricity meter (3-phase)
- Display
Digital
- Calibration
Calibrated
- Display
Digital
- MID-approved
Yes
- Reading type
Active energy
- Current (max.)
1 A
- Current range
1 A (max)
- Type
B24 212-100
- Effective current range
bis maximal 6 A
DRA (DIN-rail adapter)
70
26.5 mm
65 mm
0.721 W
50-60 MHz
4
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323019 ABB B24 212-100 2CMA100180R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2323019 ABB B24 212-100 2CMA100180R1000 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
Description
Three-phase meter for measuring a three-wire or four-wire three-phase current network via a CT converter connection (converter ratio for current configurable) up to a maximum of 6 A. The following values are output via a white backlit display with up to 7 digits: Active energy (class 1) and reactive energy (class 2) for import and export, power, currents, voltages (L-L; L-N), frequency, cos phi, power factor and apparent power, both per phase and total. Communication can be via the integrated interface RS485 (Modbus RTU) or via the infrared interface for connecting a KNX module. The energy meter has an output. This can be used as pulse output for the output of active or reactive energy or as alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. The counter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
