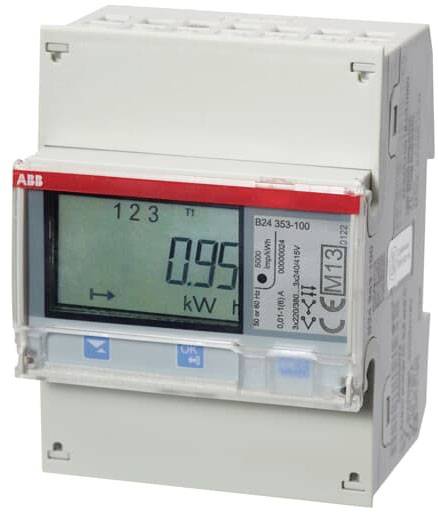

ABB B24 353-100 2CMA100184R1000 Electricity meter (3-phase) Digital MID-approved: Yes Single 1 pc(s)

Three-phase meter for measuring a three-wire or four-wire three-phase current network via a CT converter connection (converter ratio for current configurable) up to a maximum of 6 A. The following values are output via a seven-segment display with up to 7 digits: Active energy (class 0.5) and reactive energy (class 2) for import and export, power, currents, voltages (L-L; L-N), frequency, cos phi, power factor and apparent power, both per phase and total. Communication can be via the integrated M-Bus interface or via the infrared interface for connecting a KNX module. The energy meter has 2 permanently configured inputs and outputs. The output can be used as pulse output for the output of active or reactive energy or as alarm output. Up to 25 alarm values (threshold values with time delay) can be set here. The inputs are used to control the tariffs or to count external pulses. The resettable intermediate counter enables the measurement of individual intervals. In addition, the counter records up to 4 tariffs. The counter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
