ABB B6-30-10-80 Switch 4 makers, 1 maker 4 kW 220 V 8.5 A 1 pc(s)

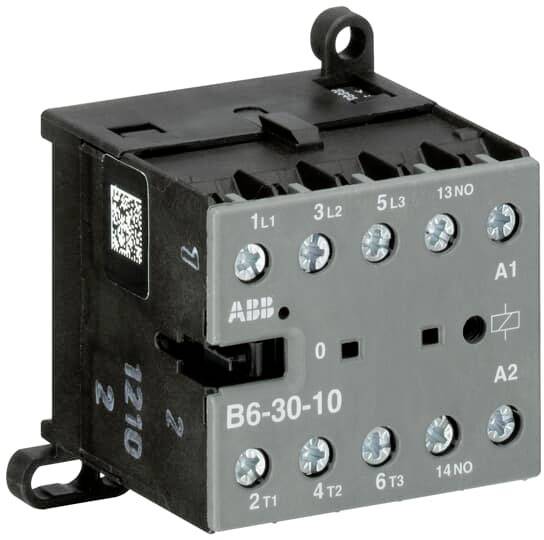

A black ABB contactor with a grey front plate, labelled 'B6-30-10', shows several screw terminals for electrical connections.
Product type
Switch
No. of pins
3-pin
Nominal voltage
220 V
Current load
8.5 A
Power
4 kW
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Switch

Type

B6-30-10-80

No. of pins

3-pin

Contact type

4 makers

1 maker

Auxiliary contact type

1 maker

Nominal voltage

220 V

Control voltage (min.)

220 V AC

Control voltage (max.)

240 V AC

Control voltage range

220 - 240 V AC

Switching voltage (min.)

220 V AC

Switching voltage (max.)

4 V AC

Max. switching capacity

4000 W

Permanent current (max.)

20 A

Current load

8.5 A

4 kW

Connection

Screws

Width

100 mm

Height

50 mm

Depth

46.7 mm

Dim

(L x W x H) 150 cm x 100 mm x 50 mm

Content

1 pc(s)

Length

150 cm

Weight

180 g

52.5

57.5 mm

46.7 mm

FALSE

4 kW

3

0

1

0

8 A

16 A

220-230 V

230-240 V

220-240 V

Screw connection

220-690 V

220-690 V

AC

1.491

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2326573 ABB B6-30-10-80 Switch 4 makers, 1 maker 4 kW 220 V 8.5 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2326573 ABB B6-30-10-80 Switch 4 makers, 1 maker 4 kW 220 V 8.5 A 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.
