ABB B6-30-10-P-80 Switch 4 makers, 1 maker 220 V 8.5 A Single 1 pc(s)

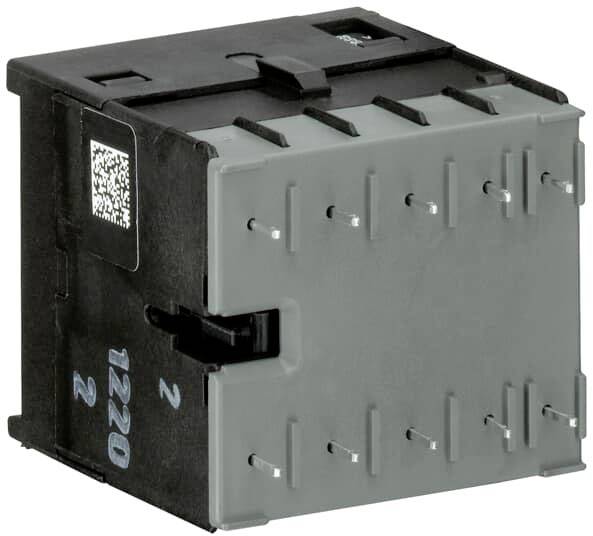

A rectangular, grey-black electronic component with multiple metal connectors and a QR code on the side.
Product type
Switch
Nominal voltage
220 V
Current load
8.5 A
Connection
Print
Packaging type
Single
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Single

Product type

Switch

Type

B6-30-10-P-80

Contact type

4 makers

1 maker

Auxiliary contact type

1 maker

Nominal voltage

220 V

Switching voltage (max.)

4 V AC

Permanent current (max.)

12 A

Current load

8.5 A

Connection

Print

Width

47.5 mm

Height

45.2 mm

Depth

47.7 mm

Dim

(W x H x D) 47.5 x 45.2 x 47.7 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2325183 ABB B6-30-10-P-80 Switch 4 makers, 1 maker 220 V 8.5 A Single 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2325183 ABB B6-30-10-P-80 Switch 4 makers, 1 maker 220 V 8.5 A Single 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.

This text is machine translated.
