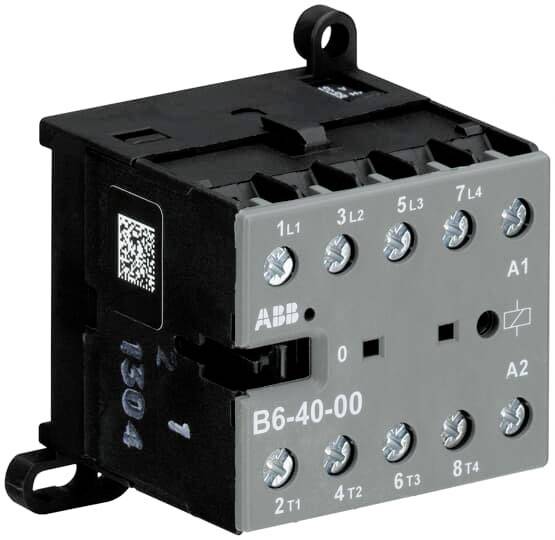

Name: ABB B6-40-00-80 Switch 4 makers 4 kW 220 V 20 A Piece 1 pc(s)
Brand: ABB
SKU: 2328798

Technical specifications

Packaging type: Piece

Product type: Switch

Type: B6-40-00-80

Contact type: 4 makers

Nominal voltage: 220 V

Control voltage (min.): 220 V AC

Control voltage (max.): 240 V AC

Control voltage range: 220 - 240 V AC

Switching voltage (min.): 220 V AC

Switching voltage (max.): 4 V AC

Permanent current (max.): 20 A

Current load: 20 A

: 4 kW

Connection: Screws

Width: 52.5 mm

Height: 57.5 mm

Depth: 46.7 mm

Dim: (W x H x D) 52.5 x 57.5 x 46.7 mm

Content: 1 pc(s)

Weight: 0.18

: 52.5

: 57.5 mm

: 46.7 mm

: FALSE

: 4 kW

: 4

: 0

: 0

: 0

: 8 A

: 16 A

: 220-230 V

: 230-240 V

: 220-240 V

: Screw connection

: 220-690 V

: 220-690 V

: AC

: 1.491

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2328798 ABB B6-40-00-80 Switch 4 makers 4 kW 220 V 20 A Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2328798 ABB B6-40-00-80 Switch 4 makers 4 kW 220 V 20 A Piece 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.

This text is machine translated.

Description

Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.

This text is machine translated.
