ABB B7-30-01-F-84 Mini contactor 3 makers, 1 breaker 5.5 kW + auxiliary contact Piece 1 pc(s)

EAN:
Part number:
Item no:

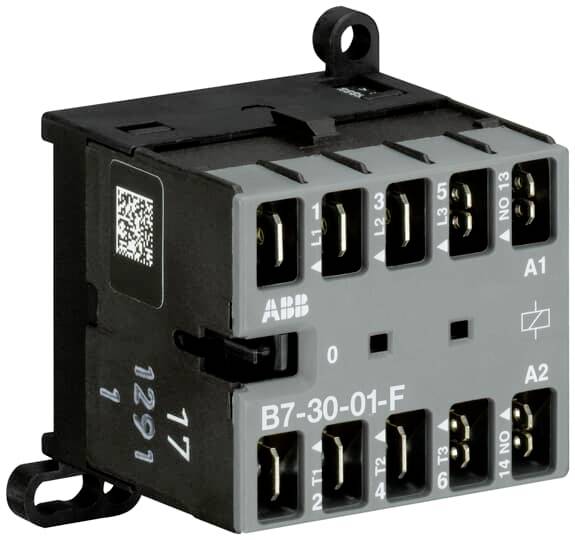

An electro-mechanical relay with multiple terminals, Model B7-30-01-F. Suitable for control applications in electrical engineering.
Product type
Mini contactor
Power
5.5 kW
Connection
CEE 7/16 CEE plug
Packaging type
Piece
Type
B7-30-01-F-84
Datasheet (PDF)
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Mini contactor

Type

B7-30-01-F-84

Contact type

3 makers

1 breaker

Control voltage (min.)

110 V AC

Control voltage (max.)

127 V AC

Control voltage range

110 - 127 V AC

Switching voltage (max.)

400 V AC

Permanent current (max.)

20 A

5.5 kW

Features

+ auxiliary contact

Connection

CEE 7/16 CEE plug

Content

1 pc(s)

FALSE

5.5 kW

3

0

0

1

12 A

20 A

110-127 V

110-110 V

Flat plug-in connection

AC

2.2371 kW

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3111764 ABB B7-30-01-F-84 Mini contactor 3 makers, 1 breaker 5.5 kW + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3111764 ABB B7-30-01-F-84 Mini contactor 3 makers, 1 breaker 5.5 kW + auxiliary contact Piece 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
