ABB B7S-30-01-2.8-72 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)

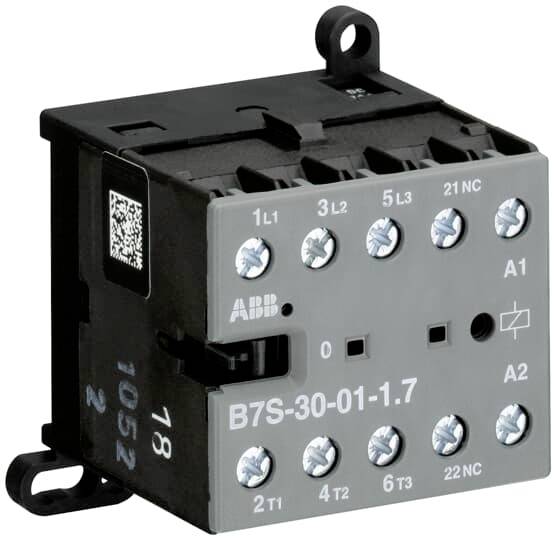

An electrical contactor from ABB with the model number B7S-30-01-1.7, identifiable by its connection terminals for different phases.
Product type
Mini contactor
Power
5.5 kW
Connection
Screws
Packaging type
Piece
Type
B7S-30-01-2.8-72
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Mini contactor

Type

B7S-30-01-2.8-72

Type

6

Contact type

3 makers

1 breaker

Auxiliary contact type

3 makers

Control voltage (min.)

17 V DC

Control voltage (max.)

32 V DC

Control voltage range

17 - 32 V DC

Permanent current (max.)

20 A

5.5 kW

Connection

Screws

Content

1 pc(s)

FALSE

5.5 kW

3

0

0

1

12 A

20 A

17-32 V

Screw connection

DC

2.2371 kW

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3111854 ABB B7S-30-01-2.8-72 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3111854 ABB B7S-30-01-2.8-72 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.

This text is machine translated.
