ABB BC7-30-10-1.4-81 Mini contactor 4 makers 5.5 kW Piece 1 pc(s)

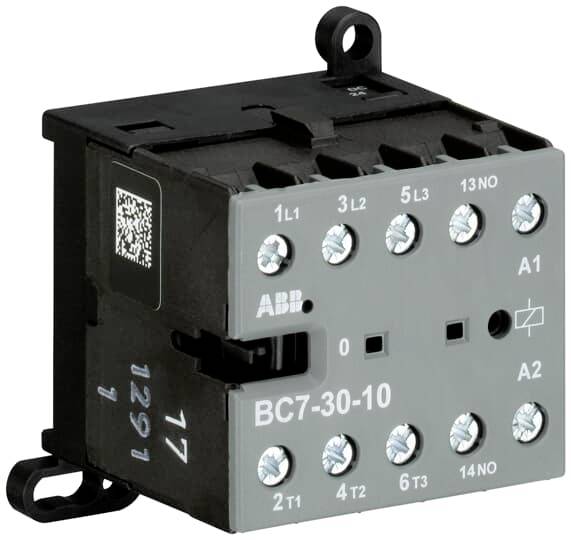

'ABB BC7-30-10 contactor' with connections and labels on the front panel, used for controlling electrical circuits.
Product type
Mini contactor
No. of pins
3-pin
Power
5.5 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Mini contactor

Type

BC7-30-10-1.4-81

No. of pins

3-pin

Contact type

4 makers

Auxiliary contact type

1 maker

Control voltage (min.)

24 V DC

Control voltage (max.)

24 V DC

Control voltage range

24 - 24 V DC

Switching voltage (min.)

220 V AC

Switching voltage (max.)

690 V AC

Permanent current (max.)

20 A

5.5 kW

Mounting type

Screw-fit

Connection

Screws

Width

52.5 mm

Height

57.5 mm

Depth

46.7 mm

Dim

(W x H x D) 52.5 x 57.5 x 46.7 mm

Content

1 pc(s)

52.5

57.5 mm

46.7 mm

FALSE

5.5 kW

3

0

1

0

11 A

20 A

24-24 V

24-24 V

24-24 V

Screw connection

220-690 V

220-690 V

DC

2.237

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3111858 ABB BC7-30-10-1.4-81 Mini contactor 4 makers 5.5 kW Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3111858 ABB BC7-30-10-1.4-81 Mini contactor 4 makers 5.5 kW Piece 1 pc(s)

Description

Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
