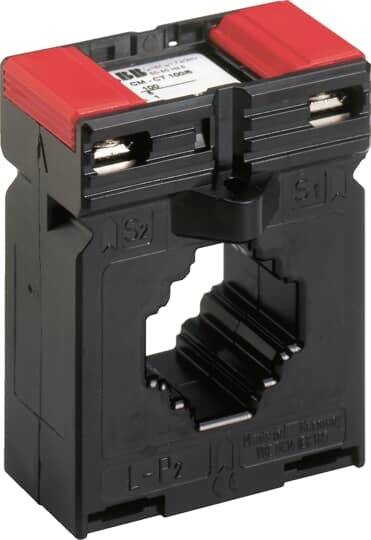

ABB CM-CT 300/1 1SVR450117R1100 Current transformer Primary current 300 A Secondary current 1 A Line feed-through (H x W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
CM-CT 300/1 5VA current transformer, class 1
- Input current (current) 300 A
- Output current 1 A
- Line feed-through diameter 26 mm
Technical specifications
- Product type
Current transformer
- Fitting type
Push-fit
- Primary current
300 A
- Secondary current
1 A
5 VA
- Line feed-through diameter
26 mm
- Accuracy class
1
- Type
CM-CT 300/1
- Digits
1
- Output current
1 A
- Input current
300 A
- Line feed-through (W)
26 mm
- Line feed-through (H x W)
26 x 26 mm
- Line feed-through (H)
26 mm
3-phase current converter set
26 mm
1
TRUE
300 A
FALSE
5 VA
1 A
FS 5
FALSE
FALSE
1
30.5-30.5 mm
30.5-30.5 mm
Screw connection
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099029 ABB CM-CT 300/1 1SVR450117R1100 Current transformer Primary current 300 A Secondary current 1 A Line feed-through (H x W
User & Safety Instructions
User & Safety Instructions 3099029 ABB CM-CT 300/1 1SVR450117R1100 Current transformer Primary current 300 A Secondary current 1 A Line feed-through (H x W
Description
Current transformer of the series CM-CT for primary/rated currents of 50A to 600A Can be selected on secondary currents of 1A or 5A. Supplied with foot angle, insulation cap and rail mounting screws.
