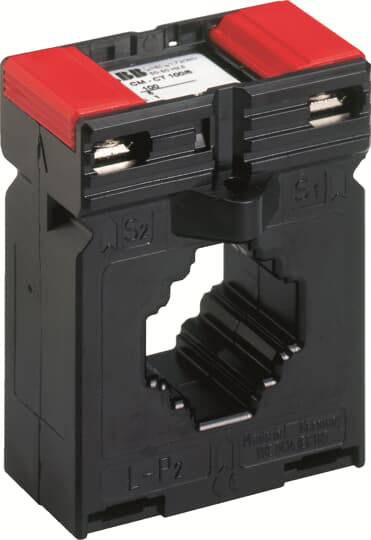

ABB CM-CT 500/5 1SVR450117R5300 Current transformer Primary current 500 A Secondary current 5 A Line feed-through (H x W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
CM-CT 500/5 Current transformer 5VA, class 1
- Input current (current) 500 A
- Output current 5 A
- Line feed-through diameter 26 mm
Technical specifications
- Product type
Current transformer
- Fitting type
Screw-fit
- Primary current
500 A
- Secondary current
5 A
- Line feed-through diameter
26 mm
- Accuracy class
1
- Type
CM-CT 500/5
- Dim
(W x H x D) 200 x 10 x 250 mm
- Digits
1
- Output current
5 A
- Input current
500 A
- Line feed-through (W)
30 mm
- Line feed-through (H x W)
26 x 30 mm
- Line feed-through (H)
26 mm
- Width
200 mm
- Height
10 mm
- Depth
250 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326301 ABB CM-CT 500/5 1SVR450117R5300 Current transformer Primary current 500 A Secondary current 5 A Line feed-through (H x W
User & Safety Instructions
User & Safety Instructions 2326301 ABB CM-CT 500/5 1SVR450117R5300 Current transformer Primary current 500 A Secondary current 5 A Line feed-through (H x W
Description
Plug-on current transformer of the series CM-CT for primary / rated currents from 50A to 600A. Selectable on secondary currents of 1A or 5A. Supplied with base bracket, insulation cap and rail mounting screws.
