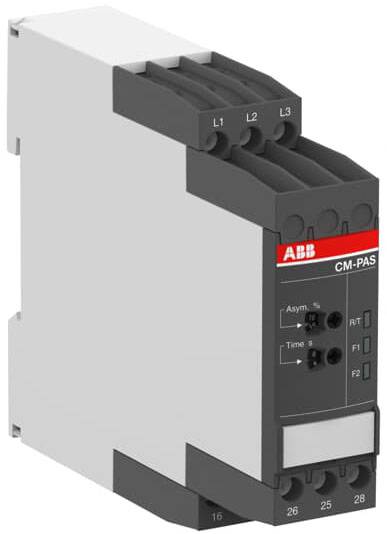

ABB CM-PAS.41S 1SVR730774R3300 Monitoring relay No. of relay outputs: 2
Product type
Monitoring relay
No. of relay outputs
2
Type
CM-PAS.41S
Dim
(W x H) 22.5 mm x 85.6 mm
Weight
0.132 kg
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
CM-PAS.41S
- Product type
Monitoring relay
- No. of relay outputs
2
- Dim
(W x H) 22.5 mm x 85.6 mm
- Weight
0.132 kg
- Width
22.5 mm
- Height
85.6 mm
22.5
78 mm
100 mm
FALSE
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329517 ABB CM-PAS.41S 1SVR730774R3300 Monitoring relay No. of relay outputs: 2
User & Safety Instructions
User & Safety Instructions 2329517 ABB CM-PAS.41S 1SVR730774R3300 Monitoring relay No. of relay outputs: 2
Description
With the three-phase monitoring relays CM series a reliable and continuous monitoring of a three-phase network, the trouble-free and economical operation of machines and systems can be guaranteed. Therefore, THE THREE-phase monitoring relays of THE CM series monitor the phase voltages, the phase sequence, the phase asymmetry, the presence of all phases as well as the neutral conductor as required.
