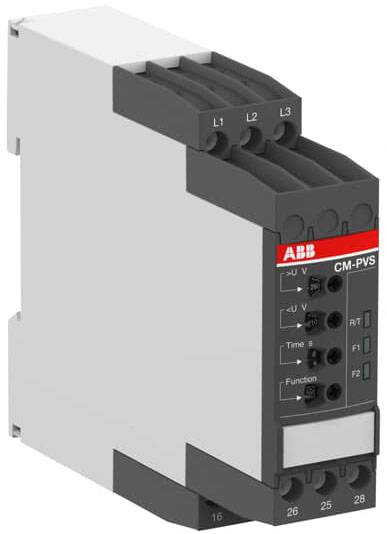

ABB CM-PVS.81S 1SVR730794R2300 Monitoring relay
Product type
Monitoring relay
Type
CM-PVS.81S
Probe inputs
Phasenspannungen. die Phasenfolge. die Phasenasymmetrie. das Vorhandensein aller Phasen sowie den Neutralleiter
Dim
(W x H) 22.5 mm x 103.7 mm
Width
22.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
CM-PVS.81S
- Product type
Monitoring relay
- Probe inputs
Phasenspannungen. die Phasenfolge. die Phasenasymmetrie. das Vorhandensein aller Phasen sowie den Neutralleiter
- Dim
(W x H) 22.5 mm x 103.7 mm
- Width
22.5 mm
- Height
103.7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329213 ABB CM-PVS.81S 1SVR730794R2300 Monitoring relay
User & Safety Instructions
User & Safety Instructions 2329213 ABB CM-PVS.81S 1SVR730794R2300 Monitoring relay
Description
With the three-phase monitoring relays CM series a reliable and continuous monitoring of a three-phase network, the trouble-free and economical operation of machines and systems can be guaranteed. Therefore, THE THREE-phase monitoring relays of THE CM series monitor the phase voltages, the phase sequence, the phase asymmetry, the presence of all phases as well as the neutral conductor as required.
