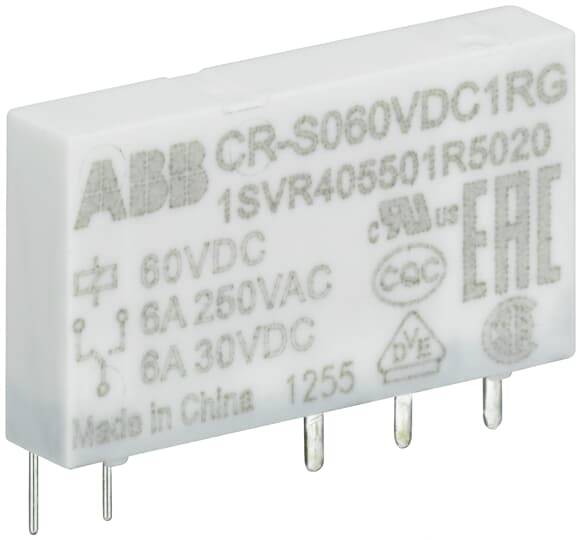

ABB CR-S060VDC1RG Interface relay Switching current (max.): 6 A 1 change-over Piece 1 pc(s)
Packaging type
Piece
Product type
Interface relay
Contact type
1 change-over
Switching voltage (max.)
250 V DC/AC
Switching current (max.)
6 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Interface relay
- Type
CR-S060VDC1RG
- Connection
Jack connector
- Max. pick-up voltage
60 V DC
- Contact type
1 change-over
- Contact material
Gold plated
- Switching voltage (max.)
250 V DC/AC
- Switching current (max.)
6 A
IP20
- Length
28 mm
- Width
5 mm
- Height
15 mm
- Dim
(L x W x H) 28 x 5 x 15 mm
- Content
1 pc(s)
6 A
5 mm
15 mm
28 mm
FALSE
Polarized
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
60-60 V
Other
IP20
FALSE
Other
DC
0
0
1
Documents & Downloads
Datasheet
Datasheet 3111319 ABB CR-S060VDC1RG Interface relay Switching current (max.): 6 A 1 change-over Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111319 ABB CR-S060VDC1RG Interface relay Switching current (max.): 6 A 1 change-over Piece 1 pc(s)
Description
As an interface, interface relays connect the electronic control level, for example PLC, to the level of sensors/actuators. Here they take over various functions: Switching of direct or alternating current loads with different ohmic, inductive and capacitive proportions, switching in the voltage range from a few mV to 250 V, switching in the current strength range from a few mA to 6 A, amplification of weak control signals, potential separation of control and load circuits as well as signal multiplication. The CR-S series features 5 different coil voltage ranges with 1 changeover contacts, either standard or hard gold-plated. Two versions are available: Complete variants or freely selectable socket and plug-in relays.
