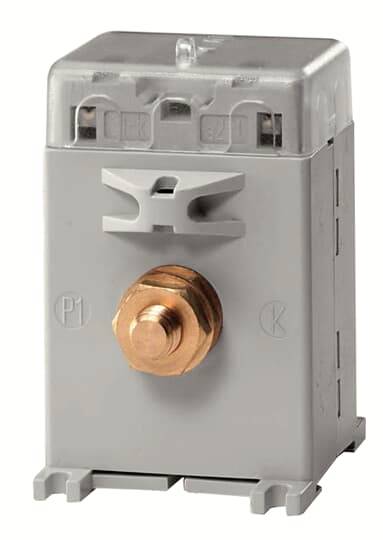

ABB CTA/100 STROMWANDL 2CSG111120R1141 Current transformer Primary current 100 A Secondary current 5 A Line feed-through
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Input current (current) 100 A
- Output current 5 A
- Line feed-through diameter 29 mm
Technical specifications
- Product type
Current transformer
- Primary current
100 A
- Secondary current
5 A
2 VA
- Line feed-through diameter
29 mm
- Type
CTA/100 STROMWANDL
- Output current
5 A
- Input current
100 A
- Line feed-through (W)
29 mm
- Line feed-through (H x W)
29 x 29 mm
- Line feed-through (H)
29 mm
Through-feed current converter
29 mm
1
FALSE
100 A
FALSE
2 VA
5 A
FS 5
TRUE
TRUE
0.5
8-8 mm
8-8 mm
Screw connection
- UKCA
yes
