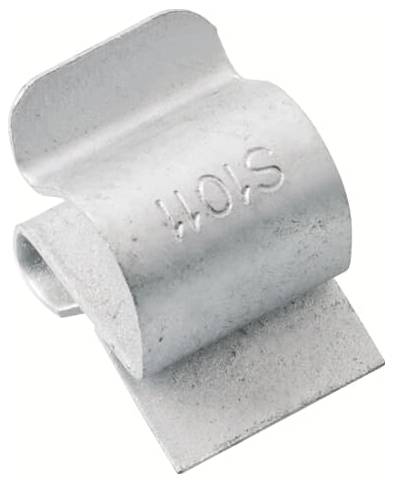

ABB E-Klips ECS-1214 Trägerklammer Trägerclip für Träger Rail bracket Spring steel 7TCA084030R1054 100 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
ECS-1214 E-Clips carrier clip for carrier 2-4mm, for cable 12-14mm
- Easy assembly: Fast and reliable installation in different designs without drilling holes or additional screws.
- Material quality: Made of low carbon spring steel of class C67S according to DIN EN 10132-4.
- Exceptional protection against corrosion: Equipped with an F8+ zinc phosphate coating (chrome-free, two-stage with water-resistant top layer), which is resistant to salt spray for over 600 hours.
- Specific dimensions: Optimized for a material thickness (flange thickness) of 2-4 mm and a cable diameter of 12-14 mm.
- Application area: Suitable for both indoor and outdoor areas with a slightly corrosive environment.
Technical specifications
- Surface: Zinc phosphate coating (F8+ key)
- Two-stage coating, chrome-free, water-resistant cover, resistant to spray salt for over 600 hours
- Hardened to 400-450 HV-10 Vickers
- Flange thickness (T): Suitable for carrier thickness of 2 - 4 mm
- Product type
Rail bracket
- Material
Spring steel
- Content
100 pc(s)
- Shape
ECS-1214
- Material properties
tempered
corrosion-protected
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3744141 ABB E-Klips ECS-1214 Trägerklammer Trägerclip für Träger Rail bracket Spring steel 7TCA084030R1054 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3744141 ABB E-Klips ECS-1214 Trägerklammer Trägerclip für Träger Rail bracket Spring steel 7TCA084030R1054 100 pc(s)
Description
E-Clips ECS-1214: The efficient solution for your cable mount
Rely on speed and reliability with the E-clips spring-steel mounting system by ABB. The support bracket ECS-1214 has been specially developed to securely fix individual flexible cables (diameter 12-14 mm) on steel structures with a thickness of 2-4 mm - and this completely without drilling or screwing. Thanks to the revolutionary two-stage F8+ zinc phosphate coating, the clamp offers long-lasting corrosion protection, which even fulfills the requirements of environmental protection. Whether indoors or outdoors: Benefit from an assembly that requires only simple tools such as a combination pliers and significantly reduces your working time. E-Clips offers tested quality according to EN ISO 9001 for your most demanding applications.
This text is machine translated.
Rely on speed and reliability with the E-clips spring-steel mounting system by ABB. The support bracket ECS-1214 has been specially developed to securely fix individual flexible cables (diameter 12-14 mm) on steel structures with a thickness of 2-4 mm - and this completely without drilling or screwing. Thanks to the revolutionary two-stage F8+ zinc phosphate coating, the clamp offers long-lasting corrosion protection, which even fulfills the requirements of environmental protection. Whether indoors or outdoors: Benefit from an assembly that requires only simple tools such as a combination pliers and significantly reduces your working time. E-Clips offers tested quality according to EN ISO 9001 for your most demanding applications.
This text is machine translated.
Scope of delivery
- 100 items per pack
