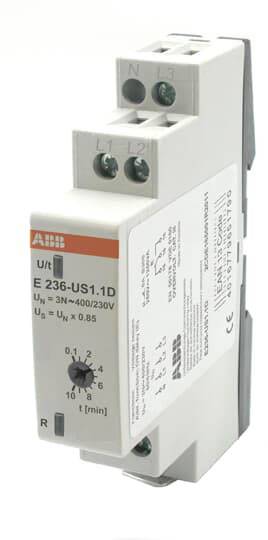

ABB E236-US1.1D 2CDE165001R2011 Monitoring relay No. of relay outputs: 1
Product type
Monitoring relay
No. of relay outputs
1
Type
E236-US1.1D
Probe inputs
Messung der Spannung aller Phasen
Height
87 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
E236-US1.1D
- Product type
Monitoring relay
- No. of relay outputs
1
- Probe inputs
Messung der Spannung aller Phasen
- Height
87 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321318 ABB E236-US1.1D 2CDE165001R2011 Monitoring relay No. of relay outputs: 1
User & Safety Instructions
User & Safety Instructions 2321318 ABB E236-US1.1D 2CDE165001R2011 Monitoring relay No. of relay outputs: 1
Description
If the measurement of the voltage of all phases exceeds the switching threshold value US including hysteresis, the time delay (t) runs and the green LED U/t flashes. After the delay time (t) has expired, the output relay R is activated (yellow LED lights up, green LED U/t flashes). If the measured voltage of one of the connected phases falls below the switching threshold value US, the output relay is no longer live (yellow LED goes out, green LED U/t goes out).
