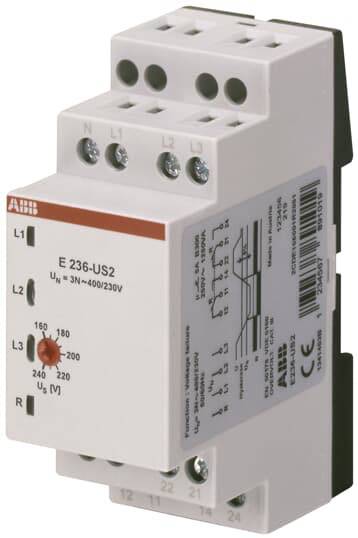

ABB E236-US2 2CDE165010R2001 Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Operating voltage
250 V AC
Type
E236-US2
Probe inputs
3N. 400/230 V
Dim
(L x W x H) 400 cm x 300 mm x 87 mm
Datasheet (PDF)
Technical specifications
- Type
E236-US2
- Product type
Monitoring relay
- Probe inputs
3N. 400/230 V
- Operating voltage
250 V AC
- Dim
(L x W x H) 400 cm x 300 mm x 87 mm
- Weight
1000 g
- Width
300 mm
- Height
87 mm
- Length
400 cm
- Depth
400 mm
35
85 mm
58 mm
FALSE
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319567 ABB E236-US2 2CDE165010R2001 Monitoring relay
User & Safety Instructions
User & Safety Instructions 2319567 ABB E236-US2 2CDE165010R2001 Monitoring relay
Description
The green LED lights up when the supply voltage is applied. If each phase voltage exceeds 195 V (US1) or exceeds the preset threshold value (US2) with respect to the neutral conductor including hysteresis when the device is switched on, the relay immediately switches to the working position. The yellow LED lights up. If at least one phase voltage falls below the threshold, the relay returns to its normal position and the yellow LED goes out. If phase 2 also fails, the green LED also goes out. The neutral conductor must be connected!
