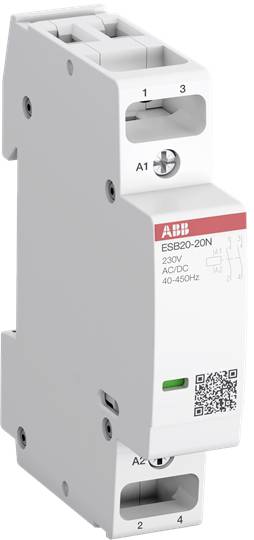

Name: ABB ESB20-20N-05 Remote switch 2 makers 220 V, 250 V + auxiliary contact Piece 1 pc(s)
Brand: ABB
SKU: 3104916

Technical specifications

Packaging type: Piece

Product type: Remote switch

Type: ESB20-20N-05

No. of pins: 2-pin

Contact type: 2 makers

Auxiliary contact type: 2 makers

Nominal voltage: 220 V
250 V

Permanent current (max.): 20 A

Features: + auxiliary contact

: IP20

Width: 20 mm

Height: 88 mm

Depth: 71 mm

Dim: (W x H x D) 20 x 88 x 71 mm

Content: 1 pc(s)

: 58 mm

: 220-250 V

: 1

: 7

: FALSE

: AC/DC

: AC/DC

: IP20

: 20 A

: TRUE

: 0

: 2

: 240-240 V

: TRUE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3104916 ABB ESB20-20N-05 Remote switch 2 makers 220 V, 250 V + auxiliary contact Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3104916 ABB ESB20-20N-05 Remote switch 2 makers 220 V, 250 V + auxiliary contact Piece 1 pc(s)

Description

2-pole contactor ESB20..N with 18 mm width controls 1-phase loads up to 20 A and is available in different contact assignments and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching. They can be placed side by side without a distance.
The auxiliary switch can be attached on the left side as an accessory to complement the product range.
ESB20..N have installation design and meet the household standard EN61095. They are therefore particularly suited for distributor installation.

This text is machine translated.

Description

2-pole contactor ESB20..N with 18 mm width controls 1-phase loads up to 20 A and is available in different contact assignments and coil voltages. They control electrical heaters, water heaters, motors for pumps, ventilation and other drives as well as lighting. Through an integrated coil circuit they work with AC as well as with DC control voltages. The devices are therefore absolutely free of humming and low while switching. They can be placed side by side without a distance.
The auxiliary switch can be attached on the left side as an accessory to complement the product range.
ESB20..N have installation design and meet the household standard EN61095. They are therefore particularly suited for distributor installation.

This text is machine translated.
