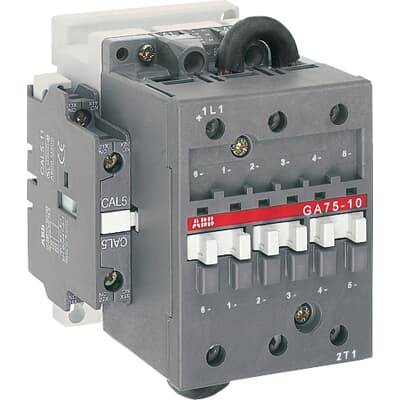

ABB GA75-10-11-88 Contactor 4 makers, 1 breaker + auxiliary contact 1 pc(s)
Product type
Contactor
No. of pins
1-pin
Connection
Screws
Type
GA75-10-11-88
Contact type
4 makers
1 breaker
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Contactor
- Type
GA75-10-11-88
- No. of pins
1-pin
- Contact type
4 makers
1 breaker
- Control voltage (min.)
230 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
230 - 240 V AC
- Permanent current (max.)
85 A
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
FALSE
3
0
1
1
230-240 V
240-260 V
Screw connection
85 A
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105551 ABB GA75-10-11-88 Contactor 4 makers, 1 breaker + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105551 ABB GA75-10-11-88 Contactor 4 makers, 1 breaker + auxiliary contact 1 pc(s)
Description
The contactors GA75-10-11 are designed for switching DC current and are designed as block contactors.
They have arc chambers with permanent magnets specially designed for switching DC current. The three power paths of the contactor are connected in series via two pre-installed insulated connectors.
The GA75 is a single-pole contactor in which the polarities indicated on the terminals must be observed. It is also marked with 1L1 for the plus pole and 2T1 for the minus pole. Furthermore, it is factory-fitted with a 2-pole side auxiliary contact (1S+1Ö).
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
They have arc chambers with permanent magnets specially designed for switching DC current. The three power paths of the contactor are connected in series via two pre-installed insulated connectors.
The GA75 is a single-pole contactor in which the polarities indicated on the terminals must be observed. It is also marked with 1L1 for the plus pole and 2T1 for the minus pole. Furthermore, it is factory-fitted with a 2-pole side auxiliary contact (1S+1Ö).
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
