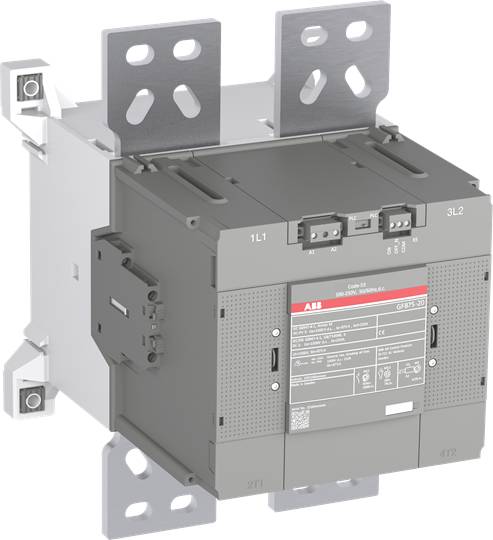

ABB GF875-20-22-51 Contactor 4 makers, 2 breakers + surge protection Piece 1 pc(s)
Product type
Contactor
No. of pins
2-pin
Connection
Terminal strip
Packaging type
Piece
Type
GF875-20-22-51
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
GF875-20-22-51
- No. of pins
2-pin
- Contact type
4 makers
2 breakers
- Control voltage (min.)
24 V AC
24 V DC
- Control voltage (max.)
60 V AC
60 V DC
- Control voltage range
24, 24 - 60, 60 V AC, V DC
- Switching voltage (max.)
1500 V DC/AC
- Features
+ surge protection
- Connection
Terminal strip
- Content
1 pc(s)
FALSE
2
0
2
2
24-60 V
24-60 V
24-60 V
Connection rail
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111090 ABB GF875-20-22-51 Contactor 4 makers, 2 breakers + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111090 ABB GF875-20-22-51 Contactor 4 makers, 2 breakers + surge protection Piece 1 pc(s)
Description
GF875 contactors are specially designed for 1500 V DC PV solar central inverters.
These contactors are designed in block design with 2 main poles. The main poles are equipped with special arc contacts that enable a bi-directional switch-off of currents up to 750 V DC per pole.
- Control circuit: AC or DC operation with coil electronics for a wide control voltage range, only 2 coils are necessary to cover control voltages between 24...60 V AC/DC and 100...250 V AC/DC.
- Tolerant to strong control voltage fluctuations
- Lower energy consumption
- Very clear opening and closing operations
- Can withstand short voltage drops and voltage drops.
- Built-in surge protection
This text is machine translated.
These contactors are designed in block design with 2 main poles. The main poles are equipped with special arc contacts that enable a bi-directional switch-off of currents up to 750 V DC per pole.
- Control circuit: AC or DC operation with coil electronics for a wide control voltage range, only 2 coils are necessary to cover control voltages between 24...60 V AC/DC and 100...250 V AC/DC.
- Tolerant to strong control voltage fluctuations
- Lower energy consumption
- Very clear opening and closing operations
- Can withstand short voltage drops and voltage drops.
- Built-in surge protection
This text is machine translated.
