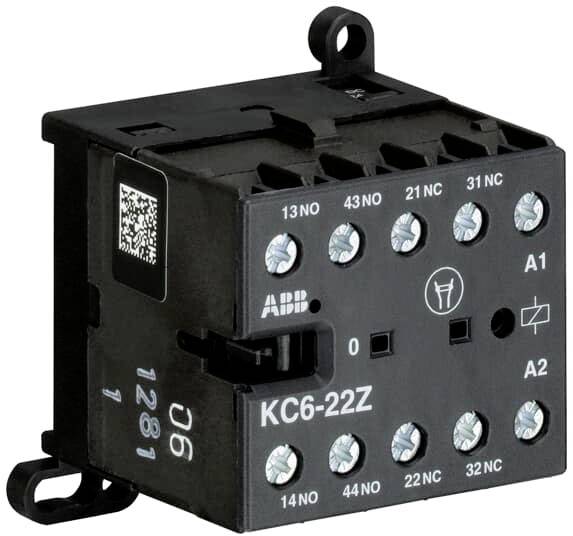

ABB KC6-22Z-05 Switch 2 makers 3 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
4-pin
Current load
3 A
Connection
Axial screw terminal
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
KC6-22Z-05
- Type
6
- No. of pins
4-pin
- Contact type
2 makers
- Auxiliary contact type
2 makers
- Switching voltage (max.)
230 V DC/AC
- Permanent current (max.)
4 A
- Current load
3 A
- Mounting type
DIN rail
- Connection
Axial screw terminal
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327353 ABB KC6-22Z-05 Switch 2 makers 3 A Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327353 ABB KC6-22Z-05 Switch 2 makers 3 A Piece 1 pc(s)
Description
Small contactor relays K/KC 6 fulfill relay function and stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. The 4-pin devices offer a wide range of applications even under unfavorable space conditions. With their AC or DC control, they switch control circuits or load circuits up to 4 A (230 V). Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.
This text is machine translated.
This text is machine translated.
