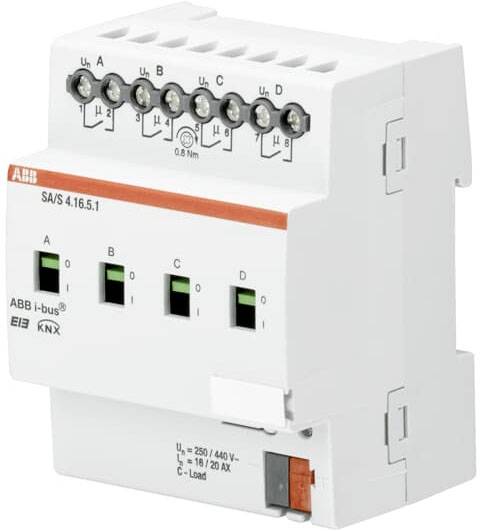

ABB KNX 2CDG110133R0011 Actuator 4-channel SA/S4.16.5.1
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Series
KNX
- Power supply (LOV)
mains-powered
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Factory colour
Multicolour
- Width
4 mm
- Height
64.5 mm
- Dim
(W x H) 4 mm x 64.5 mm
- Hub
Not required, optional for remote access
n.rel.
- Current consumption
20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2326310 ABB KNX 2CDG110133R0011 Actuator 4-channel SA/S4.16.5.1
Description
Switches 4 independant electrical consumers via ABB i-bus® with potential-free contacts. The contact can be operated manually for each output. The switch state of the contact is displayed. The 16/20AX, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks such as bulbs with compensation capacitors or fluorescent lamp loads (AX) according to DIN EN 60669.
