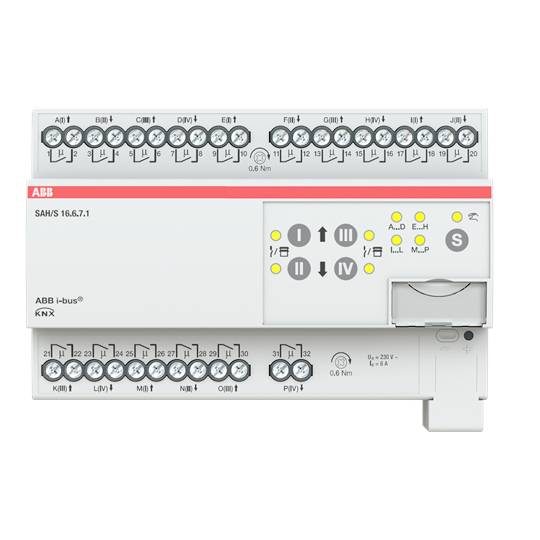

ABB KNX 2CDG110245R0011 Switch / shutter actuator SAH/S16.6.7.1
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch / shutter actuator
- Series
KNX
- Used at
Indoors
IP20
- Operating voltage
110 V
230 V
1200 W
- Data transfer (Smart Home)
Wired
- Channels
16
- Factory colour
Multicolour
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Features
Motor-operated
DRA (DIN-rail adapter)
6 A
1200 W
110-230 V
TRUE
FALSE
FALSE
1200 W
FALSE
16
0
8
6 A
None
FALSE
FALSE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
63.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104004 ABB KNX 2CDG110245R0011 Switch / shutter actuator SAH/S16.6.7.1
User & Safety Instructions
User & Safety Instructions 3104004 ABB KNX 2CDG110245R0011 Switch / shutter actuator SAH/S16.6.7.1
Description
The 6A Combi-actuator possesses 16 independent switching relays, with which individual electrical consumers or in pairs 230V AC blinds can be switched via ABB i-bus®. Manual output operation is possible. The switching or drive state of the output is displayed. Manual operation of the device can be blocked. It is a KNX device and does not require an additional power supply.
