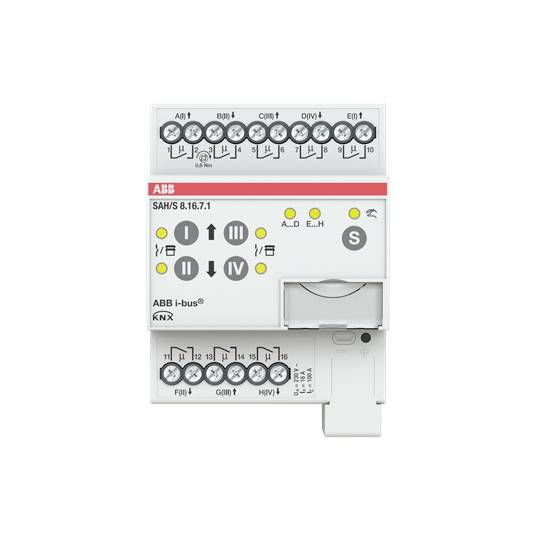

ABB KNX 2CDG110250R0011 Switch / shutter actuator SAH/S8.16.7.1
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Switch / shutter actuator
- Series
KNX
IP20
- Operating voltage
110 V
230 V
1200 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
REG
- Factory colour
Multicolour
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
350 g
DRA (DIN-rail adapter)
16 A
1200 W
110-230 V
TRUE
FALSE
FALSE
1200 W
FALSE
8
0
4
16 A
None
FALSE
FALSE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
64.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104009 ABB KNX 2CDG110250R0011 Switch / shutter actuator SAH/S8.16.7.1
User & Safety Instructions
User & Safety Instructions 3104009 ABB KNX 2CDG110250R0011 Switch / shutter actuator SAH/S8.16.7.1
Description
The 16A Combi actuator has 8 independent switching relays with which individual electrical consumers or in pairs 230V AC blinds can be switched via ABB i-bus®. A manual condition of the outputs is possible. The switching or drive state of the output is displayed. Manual operation of the device can be blocked. It is a KNX device and does not require an additional power supply.
