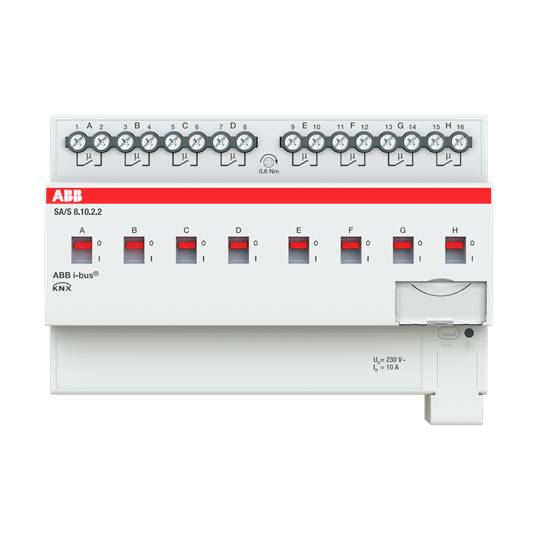

ABB KNX 2CDG110259R0011 Actuator SA/S8.10.2.2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Actuator
- Series
KNX
- Max. switching capacity
2500 W
IP20
- Operating voltage
110 V
230 V
2500 W
- Data transfer (Smart Home)
Wired
- Channels
8
- Mounting type
DIN rail
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
1000 g
DRA (DIN-rail adapter)
10 A
2500 W
110-230 V
TRUE
FALSE
FALSE
2500 W
FALSE
8
0
8
10 A
None
FALSE
FALSE
TRUE
TRUE
IP20
TRUE
FALSE
FALSE
FALSE
FALSE
64.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104018 ABB KNX 2CDG110259R0011 Actuator SA/S8.10.2.2
User & Safety Instructions
User & Safety Instructions 3104018 ABB KNX 2CDG110259R0011 Actuator SA/S8.10.2.2
Description
Switches electrical consumers via ABB i-bus® with 2, 4, 8 or 12 independent potential-free contacts. For each output the manual operation of the contact is possible. The switch state of the contact is displayed. The 10A series is particularly suitable for switching resistive, inductive and capacitive loads as well as fluorescent lamp loads according to DIN EN 60669.
