ABB MC1AB00ATN Mini contactor 2 makers, 2 breakers 4 kW 1 pc(s)

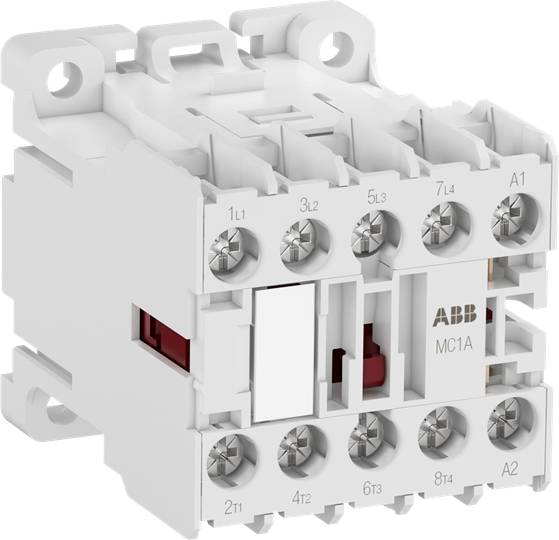

A white electrical contactor with multiple connection terminals and the 'ABB' inscription on the front.
Product type
Mini contactor
No. of pins
4-pin
Power
4 kW
Connection
Screws
Type
MC1AB00ATN
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Mini contactor

Type

MC1AB00ATN

No. of pins

4-pin

Contact type

2 makers

2 breakers

Auxiliary contact type

2 makers

Control voltage (min.)

220 V AC

Control voltage (max.)

277 V AC

Control voltage range

220 - 277 V AC

Switching voltage (max.)

690 V AC

Max. switching capacity

4 W

Permanent current (max.)

20 A

4 kW

Mounting type

DIN rail

Connection

Screws

Content

1 pc(s)

FALSE

4 kW

2

2

0

0

9 A

20 A

220-277 V

220-220 V

Screw connection

AC

9 A

4 kW

2.2371 kW

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3104558 ABB MC1AB00ATN Mini contactor 2 makers, 2 breakers 4 kW 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3104558 ABB MC1AB00ATN Mini contactor 2 makers, 2 breakers 4 kW 1 pc(s)

Description

The MC1A small contactor is a size-optimized 4-pin contactor with AC control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single or multi-phase loads up to 20 A (AC-1) at 690 V or to control signals. In addition, up to 6 additional auxiliary contacts can be mounted on the front or side. The contactor is suitable for DIN rail or wall mounting.
