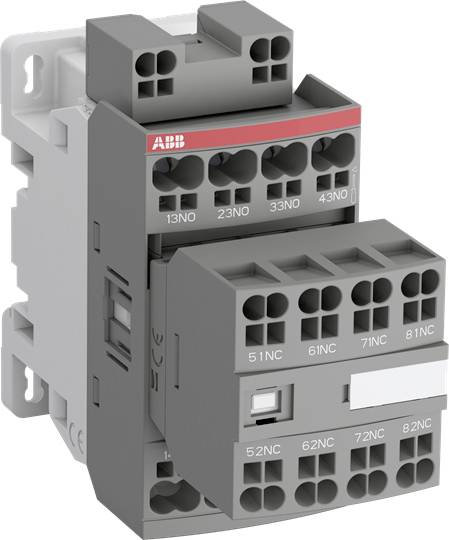

ABB NF62EK-13 Auxiliary contactor 6 makers, 2 breakers + surge protection 1 pc(s)
Product type
Auxiliary contactor
No. of pins
8-pin
Type
NF62EK-13
Contact type
6 makers
2 breakers
Auxiliary contact type
6 makers
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Auxiliary contactor
- Type
NF62EK-13
- No. of pins
8-pin
- Contact type
6 makers
2 breakers
- Auxiliary contact type
6 makers
- Control voltage (min.)
100 V AC
100 V DC
- Control voltage (max.)
250 V AC
250 V DC
- Control voltage range
100, 100 - 250, 250 V AC, V DC
- Permanent current (max.)
3 A
- Features
+ surge protection
- Content
1 pc(s)
DIN-rail/screw
FALSE
6
2
3 A
FALSE
0
100-250 V
100-250 V
100-250 V
FALSE
Spring clamp connection
0
0
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105110 ABB NF62EK-13 Auxiliary contactor 6 makers, 2 breakers + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105110 ABB NF62EK-13 Auxiliary contactor 6 makers, 2 breakers + surge protection 1 pc(s)
Description
The 8-pole LF auxiliary contactors are used to switch auxiliary and control circuits (positively-driven contacts are available). They have an electronic coil interface that allows a wide control voltage range and can handle large control voltage fluctuations. LF auxiliary contactors have built-in overvoltage protection and do not require any additional quenching circuits.
This text is machine translated.
This text is machine translated.
