ABB OS200J04F Isolator switch 200 A 1 pc(s)
Product type
Isolator switch
Operation type
Rotation actuator
Switching current (max.)
200 A
No. of contacts
4
Number of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- Operation type
Rotation actuator
- No. of contacts
4
- Number of pins
4
- Connection
Bolt fixings
- Switching current (max.)
200 A
200 kW
IP20
- Content
1 pc(s)
- Type
OS200J04F
Other
200 A
4
80 kA
IP20
Other
FALSE
Bolt connection
FALSE
Short thumb-grip
TRUE
TRUE
200 kW
8 kA
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Left
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099636 ABB OS200J04F Isolator switch 200 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3099636 ABB OS200J04F Isolator switch 200 A 1 pc(s)
Description

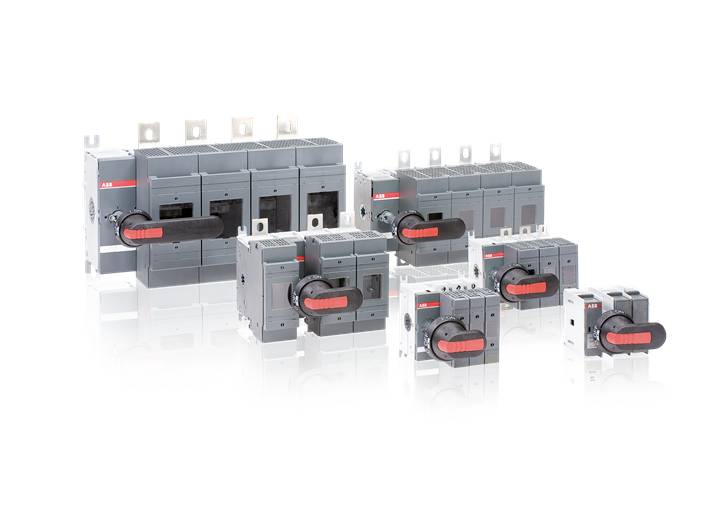

The manually operated switch disconnectors of the OT series are unique in their variety of variations and flexibility. The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC. Despite their high output, the switches are very user-friendly and take up little space. A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position. In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
