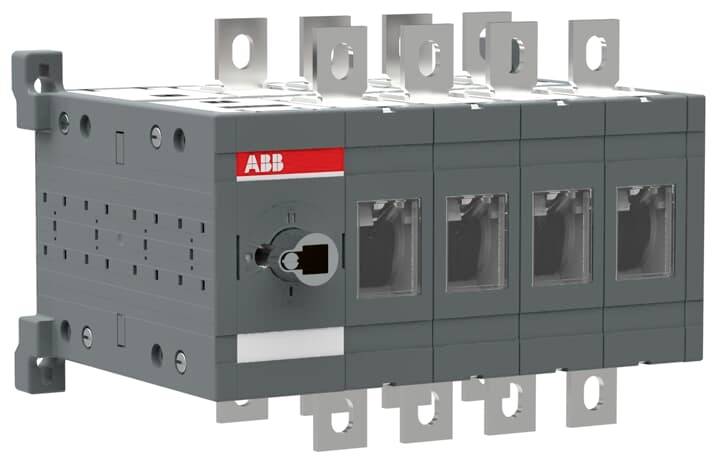

ABB OT315E04CL Changeover switch 315 A 1000 V Black 1 pc(s)
Product type
Changeover switch
Operation type
manually
Switching voltage
1000 V
Switching current (max.)
315 A
Casing/button colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Changeover switch
- Casing/button colour
Black
- Operation type
manually
- Switch position
1 x On/Off/On
- Print motif
I/0/II
- Number of pins
4
- Switching voltage
1000 V
- Switching current (max.)
315 A
160 kW
IP20
- Content
1 pc(s)
- Type
OT315E04CL
0
0
4
1000-1000 V
IP20
0
1
TRUE
FALSE
Other
FALSE
Other
TRUE
FALSE
TRUE
160 kW
15 kA
Black
FALSE
TRUE
FALSE
TRUE
FALSE
1000 V
FALSE
FALSE
Built-in device plug-in technique
315 A
160 kW
FALSE
315 A
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099955 ABB OT315E04CL Changeover switch 315 A 1000 V Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3099955 ABB OT315E04CL Changeover switch 315 A 1000 V Black 1 pc(s)
Description
The series of manually operated load switches from ABB is an optimum solution for many applications. The load change-over switch switches switch currents from 16 A to 3200 A and over at voltages up to 690 V AC. Despite high performance the switches ensure a safe operation through a variety of integrated fuse functions. Through the compact design the series enables an optimum use of space. The ABB load switches are available in two different versions. They differ in the type of switchover: Open switching (I-0-II) and closed switching (I-I+II-II). In addition, the change-over switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch, so that it functions as ATS (Automatic Transfer Switch). As such, the load change-over switch can be used in the most demanding applications.
