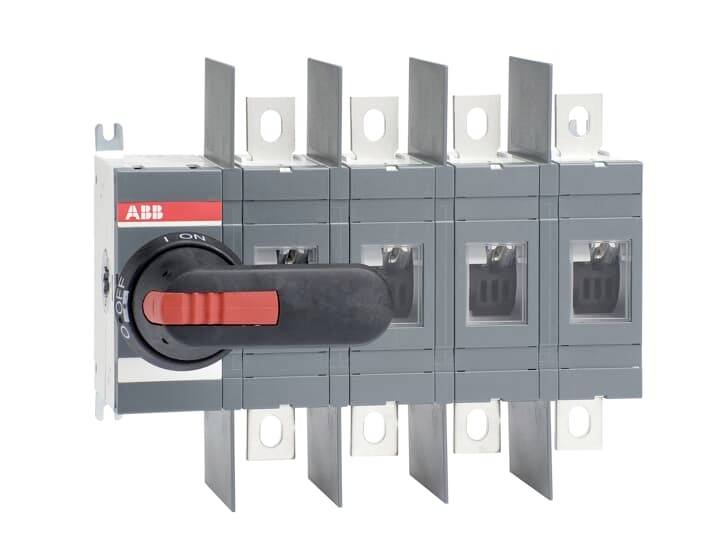

ABB OT315E04WP Isolator switch Black 315 A 1000 V Black 1 pc(s) Piece
Packaging type
Piece
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
1000 V
Switching current (max.)
315 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Switch/button features
Black
- Casing/button colour
Black
- Operation type
Rotation actuator
- Number of pins
4
- Connection
Bolt fixings
- Switching voltage
1000 V
- Switching current (max.)
315 A
180 kW
- Content
1 pc(s)
- Type
OT315E04WP
275
185 mm
107 mm
160 kW
0
0
315 A
4
1000-1000 V
IP65
0
TRUE
FALSE
Bolt connection
FALSE
Short thumb-grip
TRUE
FALSE
FALSE
160 kW
15 kA
Black
TRUE
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
315 A
180 kW
FALSE
315
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099680 ABB OT315E04WP Isolator switch Black 315 A 1000 V Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3099680 ABB OT315E04WP Isolator switch Black 315 A 1000 V Black 1 pc(s) Piece
Description
The manually operated switch disconnectors of the OT series are unique in their variety of variations and flexibility.
The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC.
Despite their high output, the switches are very user-friendly and take up little space.
A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position.
In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
This text is machine translated.
The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC.
Despite their high output, the switches are very user-friendly and take up little space.
A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position.
In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
