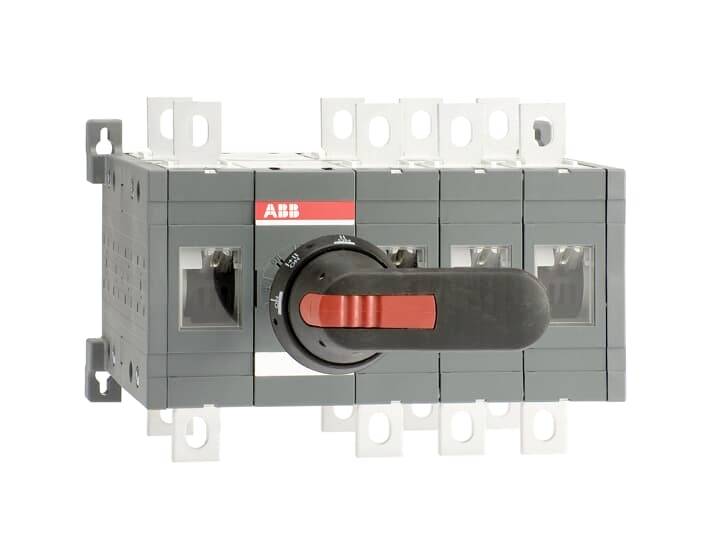

ABB OT315E13CLP Changeover switch Black 315 A 1000 V Black 1 pc(s) Piece
Packaging type
Piece
Product type
Changeover switch
Operation type
Rotation actuator
Switching voltage
1000 V
Switching current (max.)
315 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Changeover switch
- Switch/button features
Black
- Casing/button colour
Black
- Operation type
Rotation actuator
- Switch position
1 x On/Off/On
- Print motif
I/0/II
- Number of pins
3
- Switching voltage
1000 V
- Switching current (max.)
315 A
160 kW
IP20
- Content
1 pc(s)
- Type
OT315E13CLP
0
0
3
1000-1000 V
IP20
0
1
TRUE
FALSE
Other
FALSE
Long turning handle
TRUE
FALSE
TRUE
160 kW
15 kA
Black
FALSE
TRUE
FALSE
TRUE
FALSE
1000 V
FALSE
FALSE
Built-in device plug-in technique
315 A
160 kW
FALSE
315 A
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099960 ABB OT315E13CLP Changeover switch Black 315 A 1000 V Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3099960 ABB OT315E13CLP Changeover switch Black 315 A 1000 V Black 1 pc(s) Piece
Description
The series of manually operated load switches from ABB is an optimum solution for many applications. The load change-over switch switches switch currents from 16 A to 3200 A and over at voltages up to 690 V AC. Despite high performance the switches ensure a safe operation through a variety of integrated fuse functions. Through the compact design the series enables an optimum use of space. The ABB load switches are available in two different versions. They differ in the type of switchover: Open switching (I-0-II) and closed switching (I-I+II-II). In addition, the change-over switches have IEC and UL approvals. ABB offer a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. In addition, an intelligent control unit can be combined with the switch, so that it functions as ATS (Automatic Transfer Switch). As such, the load change-over switch can be used in the most demanding applications.
