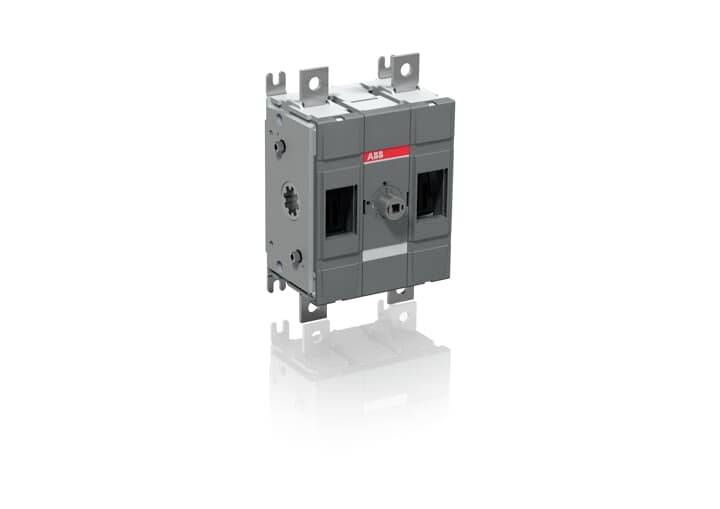

ABB OTDC100E11 Isolator switch 100 A 1000 V 1 pc(s)
Product type
Isolator switch
Operation type
manually
Switching voltage
1000 V
Switching current (max.)
100 A
Number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- Operation type
manually
- Number of pins
2
- Connection
Bolt fixings
- Switching voltage
1000 V
- Switching current (max.)
100 A
IP20
- Content
1 pc(s)
- Type
OTDC100E11
0
0
100 A
2
1000-1000 V
IP20
0
1
FALSE
FALSE
Bolt connection
FALSE
TRUE
FALSE
TRUE
5 kA
FALSE
TRUE
FALSE
TRUE
FALSE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100308 ABB OTDC100E11 Isolator switch 100 A 1000 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100308 ABB OTDC100E11 Isolator switch 100 A 1000 V 1 pc(s)
Description
The manually operated OTDC series switch disconnectors are a cost-effective and reliable solution for a wide range of industrial DC applications. The OTDC series switches currents from 100 A to 800 A (IEC) and from 100 A to 400 A (UL) at voltages up to 1500 V DC. Thanks to different mounting options, the switches offer a high degree of flexibility and efficiency in planning. The series has UL and IEC approvals. The UL version is only available as a laterally actuated version. In addition, the switches are designed to be used in particularly high ambient temperatures. In addition, the power loss has been reduced by 50%. ABB offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. Therefore, the DC switch disconnectors can be used in the most demanding applications.
