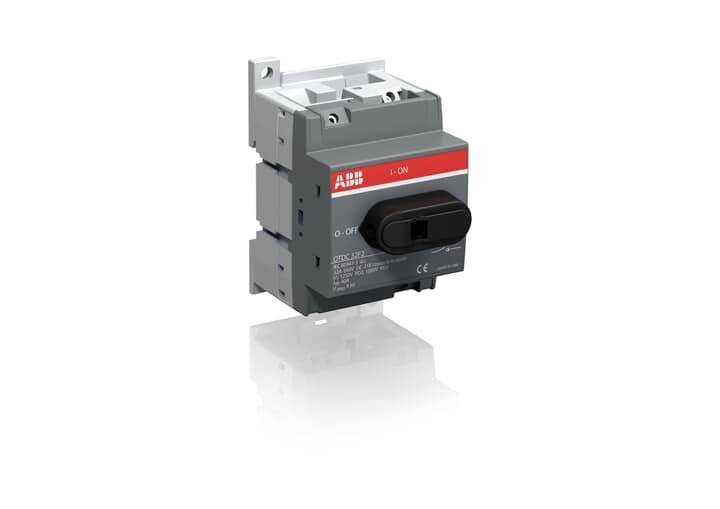

ABB OTDC32F2 Isolator switch 45 A 1000 V Black 1 pc(s) Piece
Packaging type
Piece
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
1000 V
Switching current (max.)
45 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Casing/button colour
Black
- Operation type
Rotation actuator
- Number of pins
2
- Connection
Screws
- Switching voltage
1000 V
- Switching current (max.)
45 A
IP20
- Content
1 pc(s)
- Type
OTDC32F2
52.5
89 mm
66.2 mm
0
0
32 A
2
1000-1000 V
IP20
0
1
TRUE
FALSE
Screw connection
FALSE
Toggle
TRUE
FALSE
TRUE
0.8 kA
Black
TRUE
FALSE
FALSE
TRUE
TRUE
660 V
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100240 ABB OTDC32F2 Isolator switch 45 A 1000 V Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3100240 ABB OTDC32F2 Isolator switch 45 A 1000 V Black 1 pc(s) Piece
Description
The manually operated OTDC series switch disconnectors are a cost-effective and reliable solution for a wide range of industrial DC applications. The OTDC series switches currents from 16 A to 32 A smoothly at voltages up to 1000 V DC. Thanks to different mounting options, the switches offer a high degree of flexibility and efficiency in planning. The series has an IEC approval and ensures a reliable switch-off performance at all currents, without compromising safety. In addition, the switches are designed to be used in particularly high ambient temperatures. In addition, the power loss has been reduced by 50%. ABB offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. Therefore, the DC switch disconnectors can be used in the most demanding applications.
