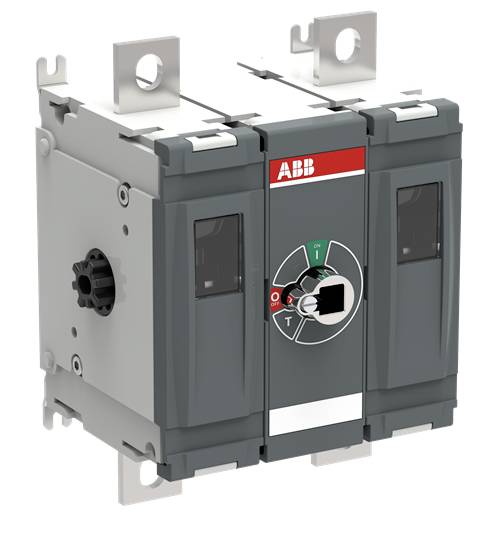

ABB OTDC800F11 Isolator switch 630 A 1000 V 1 pc(s)
Product type
Isolator switch
Switching voltage
1000 V
Switching current (max.)
630 A
No. of contacts
2
Number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- No. of contacts
2
- Number of pins
2
- Connection
Bolt fixings
- Switching voltage
1000 V
- Switching current (max.)
630 A
- Width
150 mm
- Height
122 mm
IP20
- Content
1 pc(s)
- Type
OTDC800F11
- Dim
(W x H) 150 mm x 122 mm
0
0
630 A
2
1000-1000 V
IP20
0
1
FALSE
FALSE
Bolt connection
FALSE
TRUE
FALSE
TRUE
10 kA
FALSE
TRUE
FALSE
TRUE
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100966 ABB OTDC800F11 Isolator switch 630 A 1000 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100966 ABB OTDC800F11 Isolator switch 630 A 1000 V 1 pc(s)
Description
A fully optimized two-pole DC switch disconnectors for 1000V photovoltaic power plants in the supply area covering the current range of 315-800A. The new design offers both a reduction as well as an increase in efficiency and performance.
The two-pole 1000V DC switch helps manufacturers improve system efficiency. With a width of only 150 mm and a height of 122 mm, the compact size of the new OTDC series allows manufacturers to reduce the size of combination boxes and inverters.
Key features for this particular OTDC type:
Separation of a single PV circuit, approved according to IEC 60947-1, -3.
This text is machine translated.
The two-pole 1000V DC switch helps manufacturers improve system efficiency. With a width of only 150 mm and a height of 122 mm, the compact size of the new OTDC series allows manufacturers to reduce the size of combination boxes and inverters.
Key features for this particular OTDC type:
Separation of a single PV circuit, approved according to IEC 60947-1, -3.
This text is machine translated.
