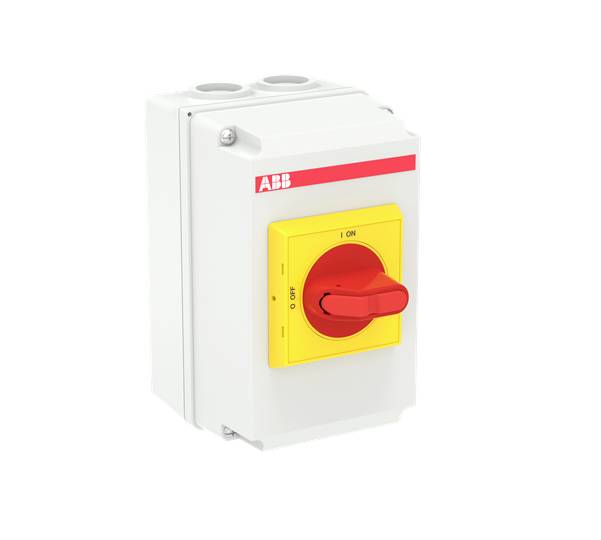

ABB OTDCP32SA12M Isolator switch + enclosure 32 A 1000 V Red 1 pc(s)
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
1000 V
Switching current (max.)
32 A
Switch/button features
+ enclosure
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- Switch/button features
+ enclosure
- Casing/button colour
Red
- Operation type
Rotation actuator
- Number of pins
3
- Connection
Screws
- Switching voltage
1000 V
- Switching current (max.)
32 A
IP65
- Content
1 pc(s)
- Type
OTDCP32SA12M
0
0
32 A
3
1000-1000 V
IP65
0
1
FALSE
FALSE
Screw connection
FALSE
Turn button
TRUE
FALSE
FALSE
Red
FALSE
TRUE
FALSE
FALSE
FALSE
1000 V
FALSE
FALSE
Complete device in housing
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100299 ABB OTDCP32SA12M Isolator switch + enclosure 32 A 1000 V Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100299 ABB OTDCP32SA12M Isolator switch + enclosure 32 A 1000 V Red 1 pc(s)
Description
The manually operated switch disconnectors in the OTDCP series housing are a cost-effective and reliable solution for a wide range of industrial DC applications. The OTDCP series connects currents from 16 A to 32 A smoothly at voltages up to 1000 V DC. Thanks to different mounting options, the switches offer a high degree of flexibility and efficiency in planning. The series has an IEC approval and ensures a reliable switch-off performance at all currents, without compromising safety. In addition, the switches are designed to be used in particularly high ambient temperatures. In addition, the power loss has been reduced by 50%. ABB offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. Therefore, the DC switch disconnectors in the housing can be used in the most demanding applications.
