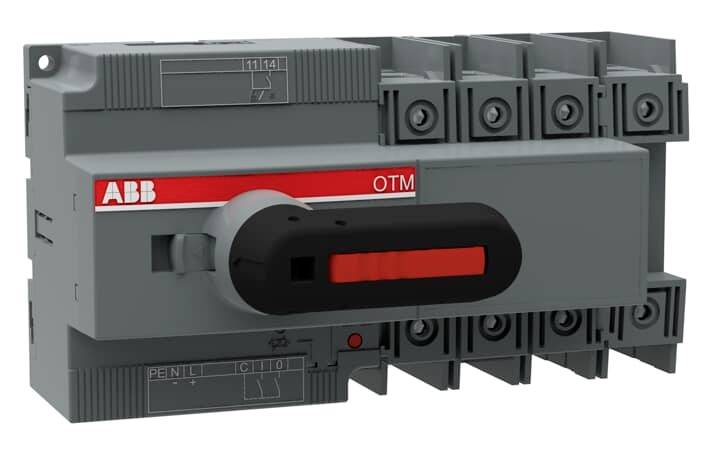

ABB OTM125F4M230V Isolator switch 125 A 750 V Black 1 pc(s)
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
750 V
Switching current (max.)
125 A
Casing/button colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Isolator switch
- Casing/button colour
Black
- Operation type
Rotation actuator
- Number of pins
4
- Connection
Screws
- Switching voltage
750 V
- Switching current (max.)
125 A
45 kW
IP20
- Content
1 pc(s)
- Type
OTM125F4M230V
0
0
125 A
4
750-750 V
IP20
0
TRUE
FALSE
Screw connection
FALSE
Long turning handle
TRUE
FALSE
FALSE
45 kW
2.5 kA
Black
TRUE
FALSE
TRUE
750 V
FALSE
FALSE
Built-in device fixed built-in technique
125 A
45 kW
FALSE
90 A
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100248 ABB OTM125F4M230V Isolator switch 125 A 750 V Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100248 ABB OTM125F4M230V Isolator switch 125 A 750 V Black 1 pc(s)
Description
The motor-driven switch disconnectors of the OTM series are unique in their variety of variations and flexibility. The OTM series switches currents from 40 A to 2500 A at voltages up to 1000 V AC. The maintenance-free motor is available in operating voltages of 110 V to 240 V AC and 24 V DC depending upon the type. To ensure a high level of safety, the motors are protected against overcurrent by a fuse. Thanks to its compact design and easy wiring, the OTM series is suitable for numerous installations, which require remote operation. In addition, the switch can be pressed manually at any time. Moreover, the OTM series possesses an IEC approval. ABB offers you a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. The simple handling makes the OTM series an optimal solution for the most different applications.
