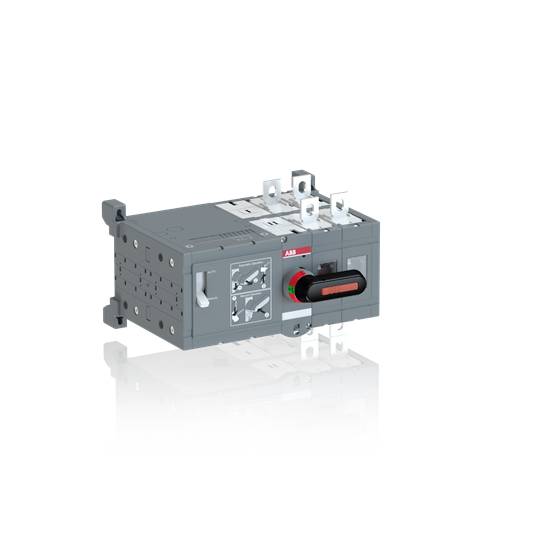

ABB OTM160E2CM230V Changeover switch 160 A 1000 V Black 1 pc(s)
Product type
Changeover switch
Operation type
Rotation actuator
Mounting type
Horizontal
Switching voltage
1000 V
Switching current (max.)
160 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Changeover switch
- Casing/button colour
Black
- Functions
latch
- Operation type
Rotation actuator
- Mounting type
Horizontal
- Print motif
I/0/II
- Number of pins
2
- Switching voltage
1000 V
- Switching current (max.)
160 A
90 kW
IP20
- Content
1 pc(s)
- Type
OTM160E2CM230V
0
0
2
1000-1000 V
IP20
0
1
TRUE
TRUE
Other
FALSE
Long turning handle
TRUE
FALSE
TRUE
90 kW
8 kA
Black
FALSE
TRUE
FALSE
TRUE
FALSE
1000 V
FALSE
FALSE
Built-in device plug-in technique
160 A
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100227 ABB OTM160E2CM230V Changeover switch 160 A 1000 V Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100227 ABB OTM160E2CM230V Changeover switch 160 A 1000 V Black 1 pc(s)
Description
Motor-operated load switches meet the DIN EN 60947-3 and DIN EN 60947-6-1 standards. The switches have an open switching (I-0-II) and are suitable for use as engine-operated mains switch. Furthermore, the switch can be used in the AC as well as DC range The switch can be installed horizontally, vertically or flat. The motor control voltage is, depending on type 240 V DC, 110 V-240 V AC / DC, 24 V DC, 48 V DC, 110 V-125 V AC / DC and 220 V-240 V AC. The motor drive is controlled via a button or a central control unit. The supplied handle for emergency operation can be locked optionally in the OFF position. The remote control is prevented by installing the handle or by installing a lock. As accessories, ABB offers black handles for emergency operation, auxiliary contacts, fourth poles, N and PE terminals, terminal covers, Connection terminals and much more.
