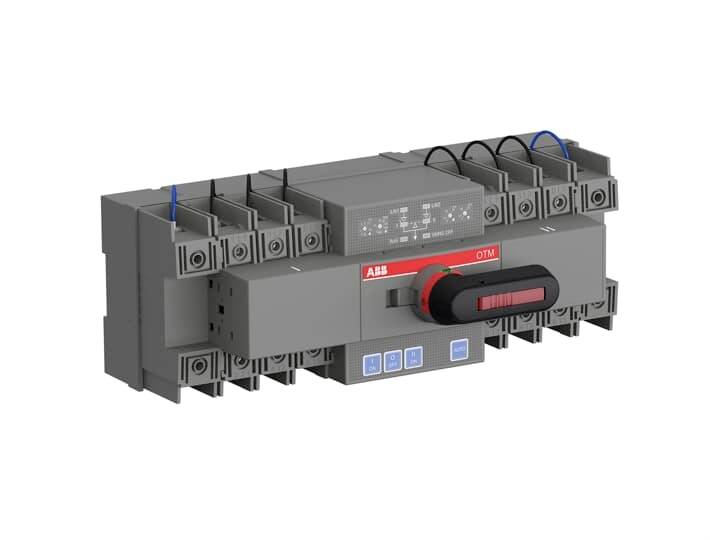

ABB OTM40F4C21D400C Changeover switch Black 1 pc(s) Piece
Packaging type
Piece
Product type
Changeover switch
Operation type
Rotation actuator
Mounting type
Upright
Casing/button colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Changeover switch
- Casing/button colour
Black
- Functions
latch/0/latch
- Operation type
Rotation actuator
- Mounting type
Upright
- Switch position
1 x On/Off/On
- Print motif
I/0/II
- Number of pins
4
- Connection
Bolt fixings
IP20
- Content
1 pc(s)
- Type
OTM40F4C21D400C
0
0
4
IP20
0
1
FALSE
TRUE
Bolt connection
FALSE
Long turning handle
TRUE
FALSE
TRUE
2.5 kA
FALSE
TRUE
FALSE
TRUE
FALSE
415 V
FALSE
FALSE
Built-in device plug-in technique
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100493 ABB OTM40F4C21D400C Changeover switch Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3100493 ABB OTM40F4C21D400C Changeover switch Black 1 pc(s) Piece
Description
Automatic load switches meet the device standards DIN EN 60947-1, DIN EN 60947-3 and DIN EN 60947-6-1. The switches have an open switching (I-0-II) and are suitable for use as an automatic power switch. One OMD control unit is included. The motor control voltage is between 220 V and 240 V AC. The motor drive is controlled via a push-button or a central control unit. The supplied handle for emergency operation can be locked optionally in the OFF position. The remote control is prevented by installing the handle or by installing a lock. Furthermore, the switch can be used in the AC as well as DC range The mounting of automatic load change-over switch is vertical, horizontal and flat possible. In versions from 40 A to 125 A, the switches are available in a compact version. As accessories, ABB offers black handles for emergency operation, auxiliary contacts, fourth poles, N and PE terminals, terminal covers, Connection terminals and much more.
