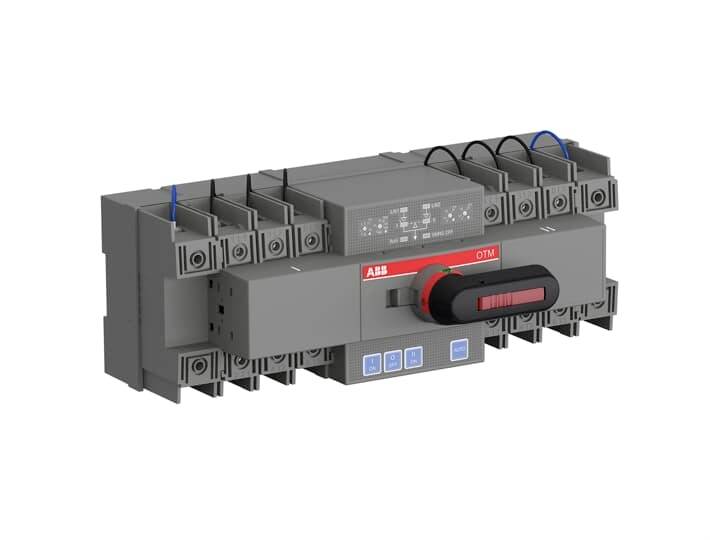

ABB OTM63F4C21D400C Changeover switch + rotary switch 1 pc(s)

Automatic load switches meet the device standards DIN EN 60947-1, DIN EN 60947-3 and DIN EN 60947-6-1. The switches have an open switching (I-0-II) and are suitable for use as an automatic power switch. One OMD control unit is included. The motor control voltage is between 220 V and 240 V AC. The motor drive is controlled via a push-button or a central control unit. The supplied handle for emergency operation can be locked optionally in the OFF position. The remote control is prevented by installing the handle or by installing a lock. Furthermore, the switch can be used in the AC as well as DC range The mounting of automatic load change-over switch is vertical, horizontal and flat possible. In versions from 40 A to 125 A, the switches are available in a compact version. As accessories, ABB offers black handles for emergency operation, auxiliary contacts, fourth poles, N and PE terminals, terminal covers, Connection terminals and much more.

This text is machine translated.
