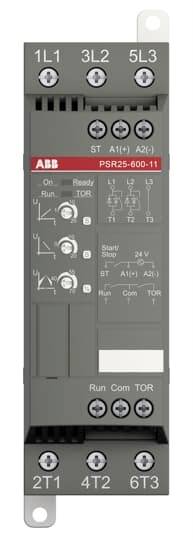

ABB PSR25-600-11 1SFA896108R1100 Soft starter Nominal current 25 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Soft starter
- Supply current
25 A
- Operating voltage
600 V
- Type
A direction of rotation
- Manufacturer part #
1SFA896108R1100
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Type
PSR25-600-11
- Motor power at 230V / 400V
5.5 kW
- Max. temperature
40 °C
Single direction
FALSE
208-600 V
24-24 V
24-24 V
24-24 V
IP20
Adjustable
25 A
5.5 kW
11 kW
40 °C
FALSE
AC/DC
TRUE
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102786 ABB PSR25-600-11 1SFA896108R1100 Soft starter Nominal current 25 A
User & Safety Instructions
User & Safety Instructions 3102786 ABB PSR25-600-11 1SFA896108R1100 Soft starter Nominal current 25 A
Description
The PSR soft-starter series comprises the most compact soft starters and thus enables the design of compact starting devices. The system concept with motor protection switches and the PSR-series products provides a much more compact starting solution than, for example, a star-delta starter. Through integrated bypass contactors power losses are reduced and connection simplified. The setup is very easy thanks to the restriction of only three potentiometers. The optimized ramp properties nevertheless provide for a very smooth start-up and run-down under all operating conditions. PSR with us = 24V AC/DC
