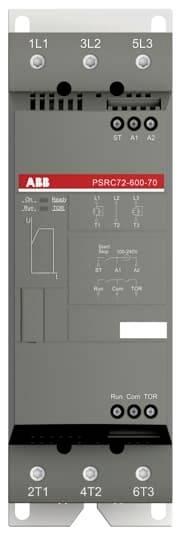

ABB PSRC72-600-70 1SFA896213R7000 Soft starter Nominal current 72 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Soft starter
- Operating voltage
600 V
- Operating phases
2
- Type
A direction of rotation
- Manufacturer part #
1SFA896213R7000
- Nominal current
72 A
- Nominal current - rounded value
72 A
- Type
PSRC72-600-70
- Motor power at 230V / 400V
22 kW
- Max. temperature
40 °C
Single direction
FALSE
208-600 V
100-240 V
100-240 V
IP10
Adjustable
72 A
22 kW
37 kW
40 °C
FALSE
AC
TRUE
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102804 ABB PSRC72-600-70 1SFA896213R7000 Soft starter Nominal current 72 A
User & Safety Instructions
User & Safety Instructions 3102804 ABB PSRC72-600-70 1SFA896213R7000 Soft starter Nominal current 72 A
Description
PSRC is a unique, very easy to use soft starter that has been developed for the special requirements of scroll compressors. It guarantees a low starting current and thus a long life of the compressor at short starting times. Since the settings cannot be changed, the entire system works very reliably. PSRC is based on the PSR Softstarter, which has been on the market for many years. PSRC with built-in bypass is compact as the PSR and therefore as easy to install and integrate into most installations.
