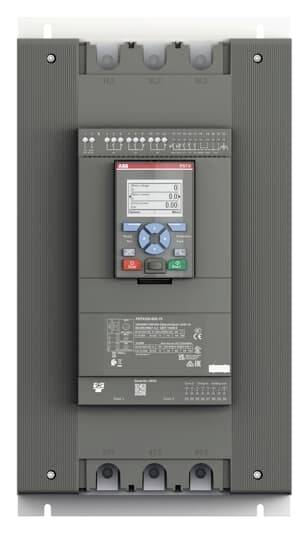

ABB PSTX250-600-70 1SFA898113R7000 Soft starter Nominal current 250 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Soft starter
- Supply current
250 A
- Operating voltage
600 V
- Type
Reversing starter
- Manufacturer part #
1SFA898113R7000
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Type
PSTX250-600-70
- Motor power at 230V / 400V
75 kW
- Max. temperature
40 °C
Reversing starter
TRUE
208-600 V
100-250 V
100-250 V
IP00
Adjustable
250 A
75 kW
132 kW
132 kW
220 kW
40 °C
TRUE
AC
TRUE
TRUE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102815 ABB PSTX250-600-70 1SFA898113R7000 Soft starter Nominal current 250 A
User & Safety Instructions
User & Safety Instructions 3102815 ABB PSTX250-600-70 1SFA898113R7000 Soft starter Nominal current 250 A
Description
The PSTX soft starters offer complete motor protection in one device and function even in case of load and mains irregularities. The motor protection is ensured by PT-100, residual current, over and undervoltage protection and other functions. Various start-, stop- and torque settings enable exact adjustments to the respective application. The pump cleaning can, for example, reverse the pump flow alternately and thus free the pump impeller from contamination. The slow jog mode forwards and backwards increases flexibility, e.g. when operating conveyor belts and cranes. A built-in bypass guarantees energy efficiency by reducing heat generation in operation. The display and the menu navigation are user-friendly.
