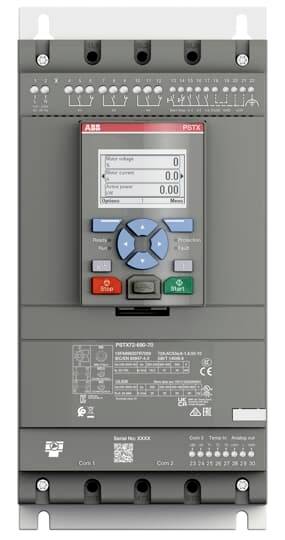

ABB PSTX72-690-70 1SFA898207R7000 Soft starter Nominal current 72 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Soft starter
- Supply current
72 A
- Operating voltage
690 V
- Type
Reversing starter
- Manufacturer part #
1SFA898207R7000
- Nominal current
72 A
- Nominal current - rounded value
72 A
- Type
PSTX72-690-70
- Motor power at 230V / 400V
18.5 kW
- Max. temperature
40 °C
Reversing starter
TRUE
208-690 V
100-250 V
100-250 V
IP00
Adjustable
72 A
18.5 kW
37 kW
37 kW
59 kW
40 °C
TRUE
AC
TRUE
TRUE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102828 ABB PSTX72-690-70 1SFA898207R7000 Soft starter Nominal current 72 A
User & Safety Instructions
User & Safety Instructions 3102828 ABB PSTX72-690-70 1SFA898207R7000 Soft starter Nominal current 72 A
Description
The PSTX soft starters offer complete motor protection in one device and function even in case of load and mains irregularities. The motor protection is ensured by PT-100, residual current, over and undervoltage protection and other functions. Various start-, stop- and torque settings enable exact adjustments to the respective application. The pump cleaning can, for example, reverse the pump flow alternately and thus free the pump impeller from contamination. The slow jog mode forwards and backwards increases flexibility, e.g. when operating conveyor belts and cranes. A built-in bypass guarantees energy efficiency by reducing heat generation in operation. The display and the menu navigation are user-friendly.
